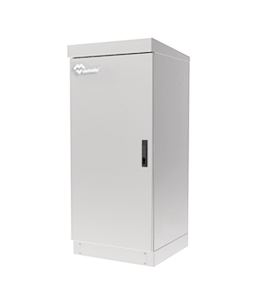

Outdoor Rack EMC IP55 19
Storm Series

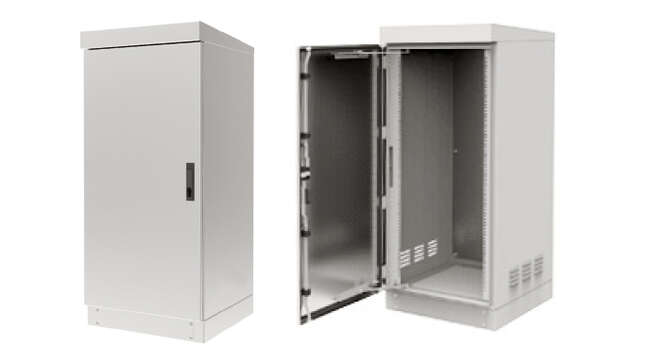

Outdoor telecom 19" rack cabinet Storm Series enclosure EMC, designed to be placed in outdoor areas, protecting the electronic equipment needed for lighting, signage and video surveillance.

EMC covers two basic principles:
- Not to disturb the other equipment and not to emit disturbances above a given level (this is called “disturbance emission”).
- Not to be disturbed by other equipment with a sufficient level of protection so as not to be disturbed easi.

Outdoor Rack EMC IP55 19 · Delvalle BoxDelvalle Box
Outdoor Rack EMC IP55 19 · Delvalle BoxDelvalle Box
Outdoor Rack EMC IP55 19 · Delvalle BoxDelvalle Box

Description

Outdoor telecom 19" rack cabinet Storm Series enclosure EMC, designed to be placed in outdoor areas, protecting the electronic equipment needed for lighting, signage and video surveillance.


EMC covers two basic principles:
- Not to disturb the other equipment and not to emit disturbances above a given level (this is called “disturbance emission”).
- Not to be disturbed by other equipment with a sufficient level of protection so as not to be disturbed easily (this is called “disturbance immunity”).

Achieve all the safety and security you need

  • Logo CE · Delvalle Box
    CE
  • Logo EMC · Delvalle Box
    EMC
  • Logo IK10 · Delvalle Box
    IK10
  • Logo ROHS · Delvalle Box
    ROHS
  • Logo UL NEMA 12 · Delvalle Box
    UL NEMA 12
  • Logo UL NEMA 3R · Delvalle Box
    UL NEMA 3R
  • Logo UL NEMA 4X · Delvalle Box
    UL NEMA 4X
  • Logo 10 year anti-corrosion · Delvalle Box
    10 year anti-corrosion
  • Logo 5 year mechanical parts · Delvalle Box
    5 year mechanical parts
  • Logo Anti grafiti option · Delvalle Box
    Anti grafiti option
  • Logo Corrosion resistant · Delvalle Box
    Corrosion resistant
  • Logo Scrach resistant · Delvalle Box
    Scrach resistant
  • Logo Waterproof · Delvalle Box
    Waterproof

Discover the advantages

Very good mechanical properties and high resistance to shape distorsion.
With water repellent injected seal.
Door retained with stoppers.
The enclosure includes anti-vandalism locks and handles suitable for semi-cylindrical profile locks.
Maintenance free for life over 30 years.
Delvalle can adapt this design to the measurements required by the client, retaining the fundamentals of insulation, sealing and safety.
High resistance to corrosion and wear.
Large space inside for Rack equipments.
Two versions: galvanized steel and painted galvanized steel.

Regulations

• Complies with EEC 89/336 and EMC Directive 2004/108/EC.
• IP55 Norm IEC EN 62208 EN 60529.
• Manufactured following EU low voltage ruling 2006/95/CE.
• RoHs, EMC, RFI y EMI compliant.
• UL approval Nema 4x, 12, 3r, 1 (on request). NoFile E342220.
 • From IP54 to IP65 Norm EN 62208 and EN 60529.
• Maximum IK10 resistance Norm IEC 62208 and EN 50102
• En 61969-3 Mechanical Structures for Electronic Equipment - outdoor enclosures -.
• IEC 60068-2-30 and IEC 60068-2-11
• Shock resistant against sharp objects EN 60439-5.
• Maximum voltage 1000 V.
• Temperature resistant: -40°C +100°C (short time +160°C).
• Option silicone gasket: from -60°C to +180°C (short time up to +350°C).



Applications

Outdoor Enclosure Storm Especially designed for telecommunications, railway signals, airtraffic signals, medical and military industries or where extra protection against electromagnetic interference is needed.

Custom Made Solutions
We offer multiple solutions

Outdoor Rack EMC IP55 19 · Delvalle Box
Do you need solutions?
2017 product catalogues

• Designs and pictures available on request.
• Plinths at base for enclosures of any size. They allow enclosures to stand over the floor, with extra room for cable entry.Available 100mm (standard) and 200mm high.
• Stainless steel AISI 316L, EN 1.4404.
Ventilation KIT (Fan, resistance heating and dual thermostat).
Graffiti-proof protective paint.
EMC version according to EEC 89/336 of electromagnetic compatibility.

Customize this product with the following components:

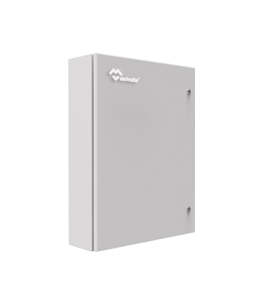

EMC electric cabinets LUXOR · Delvalle BoxDelvalle Box
EMC enclosures with an EPDM conductive gasket between frame and contact surface, ensure a perfect...

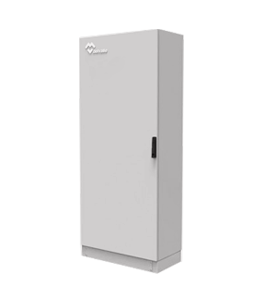

EMC electric cabinets TRIBECA · Delvalle BoxDelvalle Box
EMC enclosures with an EPDM conductive gasket between frame and contact surface, ensure a perfect...

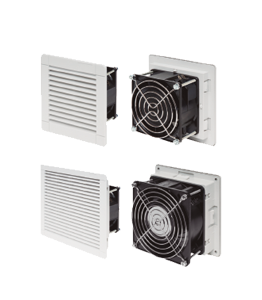

EMC filter fans IP54-55 PRIUS · Delvalle BoxDelvalle Box
EMC fan with fitted filter and EMC conductive gasket. High performance, low power, and silent...

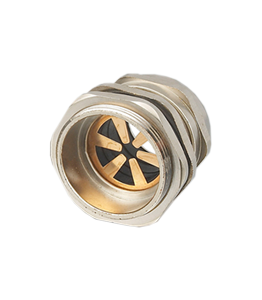

Metric EMC Nickel Plated Cable Glands IP68 · Delvalle BoxDelvalle Box
Metric EMC nickel plated cable glands IP68 are made of stainless steel AISI 304 and allow...
Metric EMC Stainless Steel Cable Glands IP68 · Delvalle BoxDelvalle Box
Metric EMC stainless steel cable glands IP68 are made of stainless steel AISI 304 and allow...
Outdoor Rack EMC IP55 19 · Delvalle Box

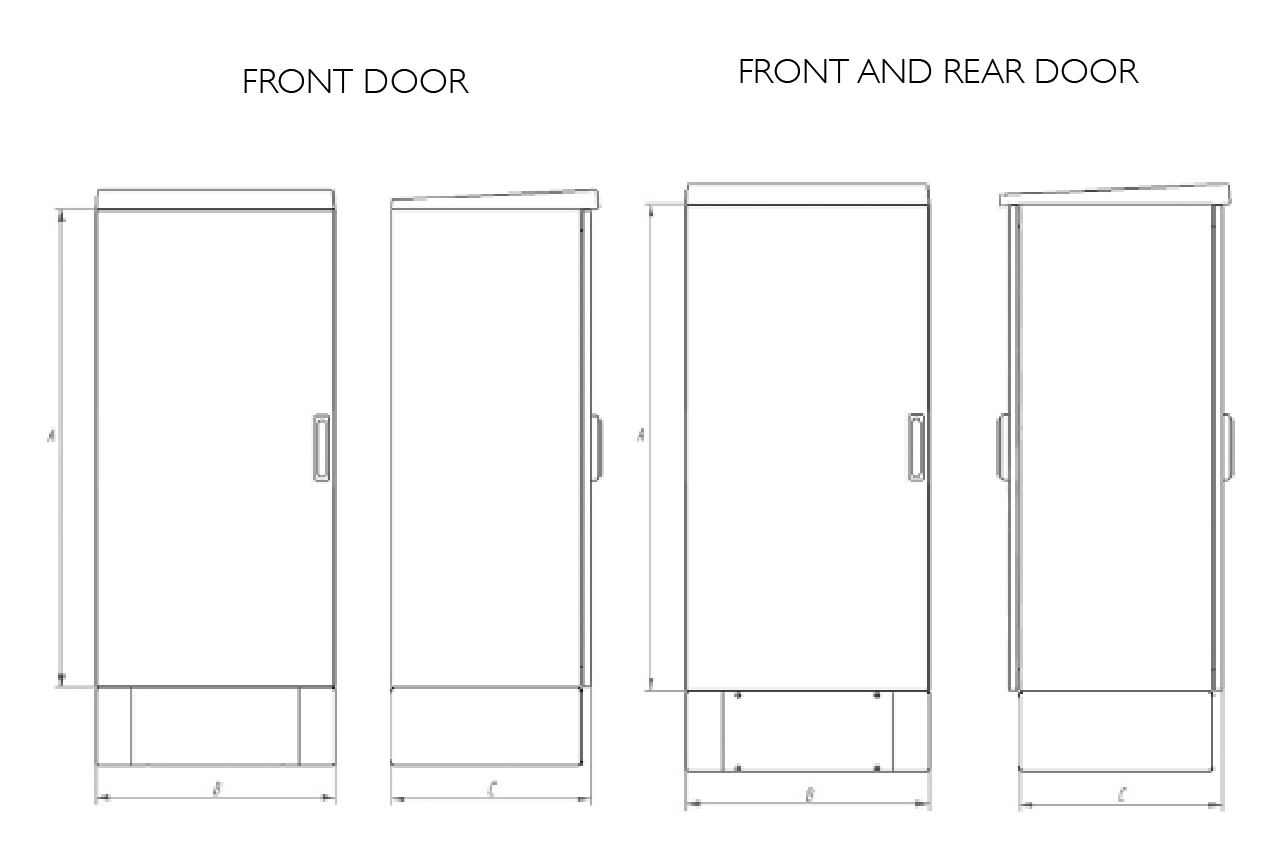

Sketches

Outdoor Rack EMC IP55 19 · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
RD606040MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 12U600600400RD606040M
RD606050MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 12U600600500RD606050M
RD606060MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 12U600600600RD606060M
RD606080MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 12U600600800RD606080M
RD606080MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 12U1200600400RD606080M
RD126050MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 24U1200600500RD126050M
RD126060MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 24U1200600600RD126060M
RD126080MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 24U1200800800RD126080M
RD146040MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 30U1450600400RD146040M
RD146050MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 30U1450600500RD146050M
RD146060MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 30U1450600600RD146060M
RD146080MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 30U1450800800RD146080M
RD148040MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 30U1450800400RD148040M
RD148050MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 30U1450800500RD148050M
RD148060MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 30U1450800600RD148060M
RD148080MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 30U1450800800RD148080M
RD196040MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 40U1900600400RD196040M
RD196050MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 40U1900600400RD196050M
RD196060MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 40U1900600600RD196060M
RD196080MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 40U1900600800RD196080M
RD198040MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 40U1900800400RD198040M
RD198050MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 40U1900800500RD198050M
RD198060MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 40U1900800600RD198060M
RD198080MRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, Rack 40U1900800800RD198080M
RD606040DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 12U600600400RD606040DM
RD606050DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 12U600600500RD606050DM
RD606060DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 12U600600600RD606060DM
RD606080DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 12U600600800RD606080DM
RD126040DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 24U1200600400RD126040DM
RD126050DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 24U1200600500RD126050DM
RD126060DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 24U1200600600RD126060DM
RD126080DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 24U1200600800RD126080DM
RD146040DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 30U1450600400RD146040DM
RD146050DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 30U1450600500RD146050DM
RD146060DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 40U1450600600RD146060DM
RD146080DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 30U1450600800RD146080DM
RD148040DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 30U1450800400RD148040DM
RD148050DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 30U1450800500RD148050DM
RD148060DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 30U1450800600RD148060DM
RD148080DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 30U1450800800RD148080DM
RD196040DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 40U1900600400RD196040DM
RD196050DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 40U1900600500RD196050DM
RD196060DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 40U1900600600RD196060DM
RD196080DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 40U1900600800RD196080DM
RD198040DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 40U1900800400RD198040DM
RD198050DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 40U1900800500RD198050DM
RD198060DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 40U1900800600RD198060DM
RD198080DMRACK OUTDOOR EMC ROAD SERIES IP55. Stainless steel, front and rear door, Rack 40U1900800800RD198080DM
RD606040EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 12U600600400RD606040EZM
RD606050EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 12U600600500RD606050EZM
RD606060EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 12U600600600RD606060EZM
RD606080EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 12U600600800RD606080EZM
RD126040EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 24U1200600400RD126040EZM
RD126050EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 24U1200600500RD126050EZM
RD126060EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 24U1200600600RD126060EZM
RD126080EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 24U1200600800RD126080EZM
RD146040EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 30U1450600400RD146040EZM
RD146050EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 30U1450600500RD146050EZM
RD146060EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 30U1450600600RD146060EZM
RD146080EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 30U1450600800RD146080EZM
RD148040EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 30U1450800400RD148040EZM
RD148050EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 30U1450800500RD148050EZM
RD148060EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 30U1450800600RD148060EZM
RD148080EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 30U1450800800RD148080EZM
RD196040EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 40U1900600400RD196040EZM
RD196050EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 40U1900600500RD196050EZM
RD196060EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 40U1900600600RD196060EZM
RD196080EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 40U1900600800RD196080EZM
RD198040EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 40U1900800400RD198040EZM
RD198050EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 40U1900800500RD198050EZM
RD198060EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 40U1900800600RD198060EZM
RD198080EZMRACK OUTDOOR EMC ROAD SERIES IP55. Galvanized, Rack 40U1900800800RD198080EZM
