Storm EMC outdoor rack 19 IP66

EMC

Outdoor telecom 19" rack cabinet Storm Series enclosure EMC, designed to be placed in outdoor areas, protecting the electronic equipment needed for lighting, signage and video surveillance.

EMC covers two basic principles:
– Not to disturb the other equipment and not to emit disturbances above a given level (this is called “disturbance emission”).
– Not to be disturbed by other equipment with a sufficient level of protection so as not to be disturbed easi.

Durable stainless steel 19" rack enclosure, especially suitable for wireline applications with active equipment, e.g. FTTC.
Robust outdoor solution for radio and transmission equipment.

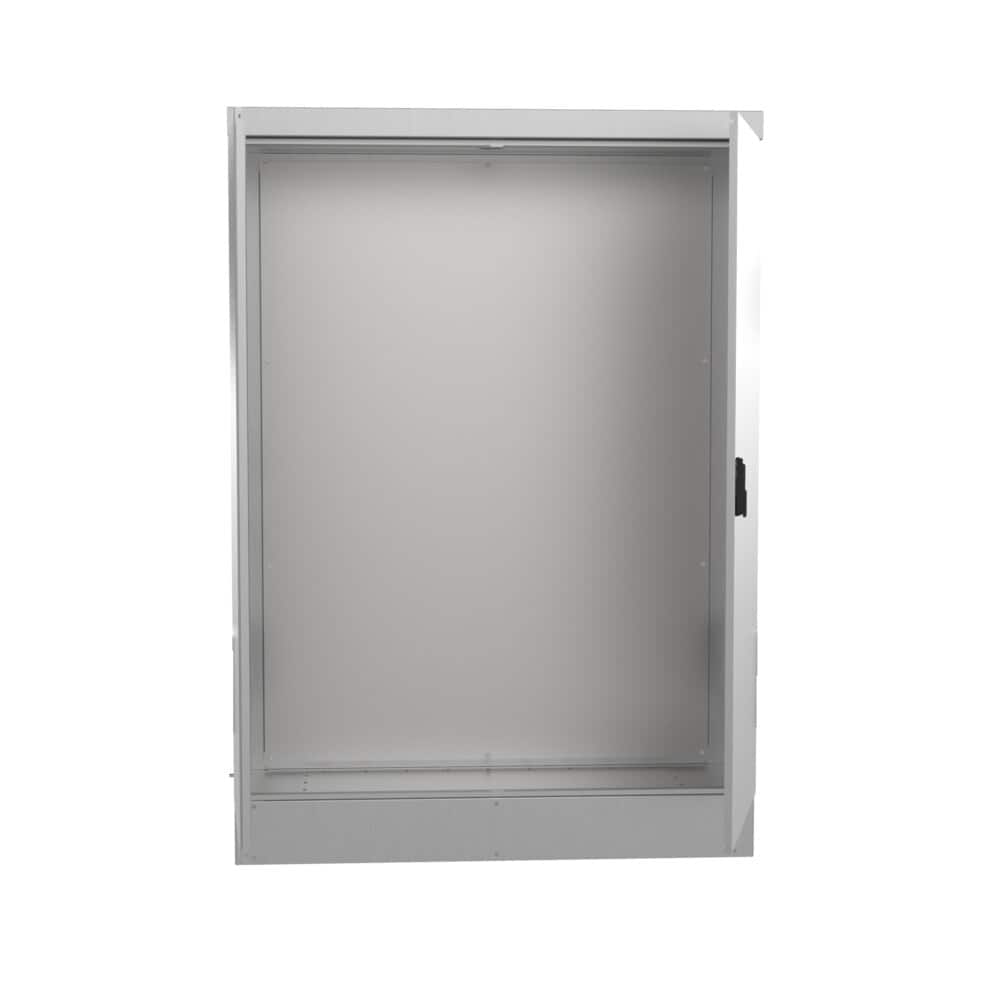

Storm EMC outdoor rack 19: main view of the product

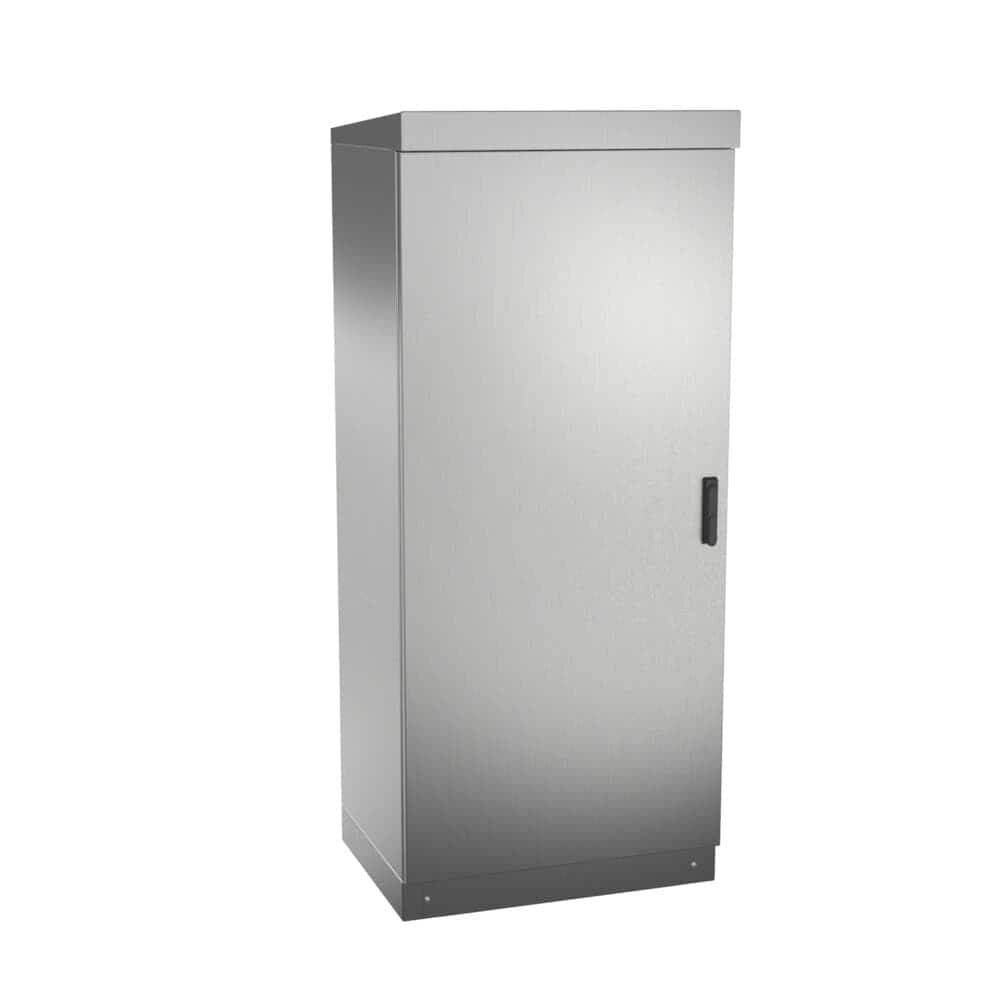

Storm EMC outdoor rack 19: detail view of the product

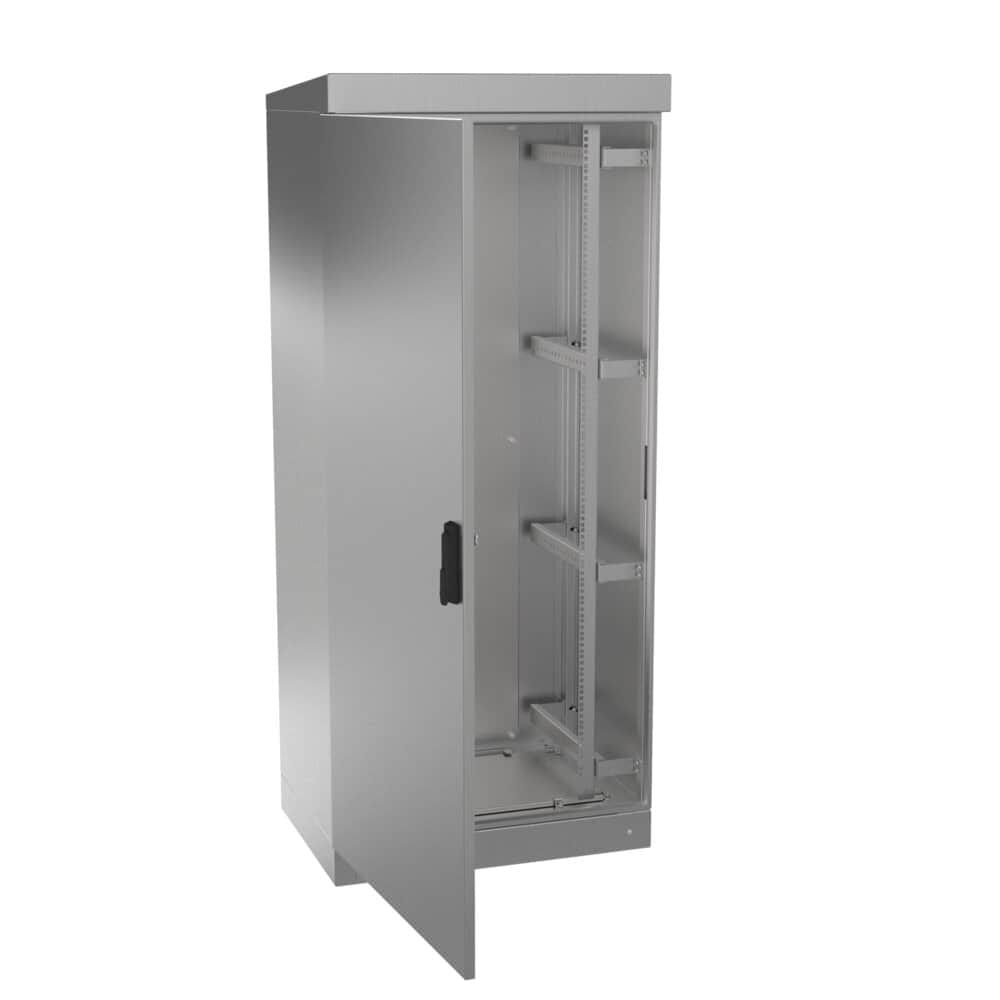

Storm EMC outdoor rack 19: additional view of the product

TECHNICAL DATA

Minimum Measurements	A=1185-2060mm B=600-800mm P=800-600mm
Maximum Double Door Measurements	A=1835mm B=1350mm P=600mm
Minimum Plate Measurements	A=965-1840mm
Minimum Plate Measurements	B=530-515mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Rotary handle
Material	AISI 304L/AISI 316L
Finish	Satin finish
Plate Material	Galvanized
Sealing Gasket	EMC
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Interior Plate Material	Insulating mounting plate (Bakelite), Stainless steel mounting plate
Alternative Gaskets	silicone (-60°C to +180°C), Polyurethane

Special designs and custom paint finishes on demand

Base para cualquier tamaño

In stainless steel AISI 316L EN 14404

Ventilation kit (fan, resistor, and thermostat)

Anti-Graffiti Treatment

High mechanical properties and high torsional strength

With injected waterproof gasket, so that moisture cannot accumulate

Spacious Interior Space for Rack Equipment

Door Stop Retainer Device

anti-vandal handle

Maintenance-free throughout its entire lifespan. Service life over 30 years

Customizable Design Adaptation

Strength, durability and long service life

Highly resistant to vandalism, corrosion, and wear

Specially Designed for Urban and Interurban Areas

Outdoor Rack Cabinet, Storm Series Specially Designed for Telecommunications, Railway Signaling, Air Signaling, Medicine, Military Industry or Wherever Needed

IEC 62208

RoHS and EMC Compliance for Cabinets

Delvalle cabinets protection standards

IK10 protection rating according to IEC 62262 standard

EN 61969-3

Compliance with IEC 60068-2-30 and IEC 60068-2-11 Standards

UL NEMA 4X, 12, 3R, and 1 standards certification

EN 60439-5

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

REFERENCES 1 DOOR		DIMENSIONS (mm)
STAINLESS STEEL	GALVANIZED STEEL	RACKS	HEIGHT -A-	WIDTH -B-	DEPTH -C-
RD606040M	RDG606040M	12 U	600	600	400
RD606050M	RDG606050M	12 U	600	600	500
RD606060M	RDG606060M	12 U	600	600	600
RD606080M	RDG606080M	12 U	600	600	800
RD126040M	RDG126040M	24 U	1200	600	400
RD126050M	RDG126050M	24 U	1200	600	500
RD126060M	RDG126060M	24 U	1200	600	600
RD126080M	RDG126080M	24 U	1200	600	800
RD146040M	RDG146040M	30 U	1450	600	400
RD146050M	RDG146050M	30 U	1450	600	500
RD146060M	RDG146060M	30 U	1450	600	600
RD146080M	RDG146080M	30 U	1450	600	800
RD148040M	RDG148040M	30 U	1450	800	400
RD148050M	RDG148050M	30 U	1450	800	500
RD148060M	RDG148060M	30 U	1450	800	600
RD148080M	RDG148080M	30 U	1450	800	800
RD196040M	RDG196040M	40 U	1900	600	400
RD196050M	RDG196050M	40 U	1900	600	500
RD196060M	RDG196060M	40 U	1900	600	600
RD196080M	RDG196080M	40 U	1900	600	800
RD198040M	RDG198040M	40 U	1900	800	400
RD198050M	RDG198050M	40 U	1900	800	500
RD198060M	RDG198060M	40 U	1900	800	600
RD198080M	RDG198080M	40 U	1900	800	800

REFERENCES 2 DOORS		DIMENSIONS (mm)
STAINLESS STEEL	GALVANIZED STEEL	RACKS	HEIGHT -A-	WIDTH -B-	DEPTH -C-
RD606040PM	RDG606040PM	12 U	600	600	400
RD606050PM	RDG606050PM	12 U	600	600	500
RD606060PM	RDG606060PM	12 U	600	600	600
RD606080PM	RDG606080PM	12 U	600	600	800
RD126040PM	RDG126040PM	24 U	1200	600	400
RD126050PM	RDG126050PM	24 U	1200	600	500
RD126060PM	RDG126060PM	24 U	1200	600	600
RD126080PM	RDG126080PM	24 U	1200	600	800
RD146040PM	RDG146040PM	30 U	1450	600	400
RD146050PM	RDG146050PM	30 U	1450	600	500
RD146060PM	RDG146060PM	30 U	1450	600	600
RD146080PM	RDG146080PM	30 U	1450	600	800
RD148040PM	RDG148040PM	30 U	1450	800	400
RD148050PM	RDG148050PM	30 U	1450	800	500
RD148060PM	RDG148060PM	30 U	1450	800	600
RD148080PM	RDG148080PM	30 U	1450	800	800
RD196040PM	RDG196040PM	40 U	1900	600	400
RD196050PM	RDG196050PM	40 U	1900	600	500
RD196060PM	RDG196060PM	40 U	1900	600	600
RD196080PM	RDG196080PM	40 U	1900	600	800
RD198040PM	RDG198040PM	40 U	1900	800	400
RD198050PM	RDG198050PM	40 U	1900	800	500
RD198060PM	RDG198060PM	40 U	1900	800	600
RD198080PM	RDG198080PM	40 U	1900	800	800
