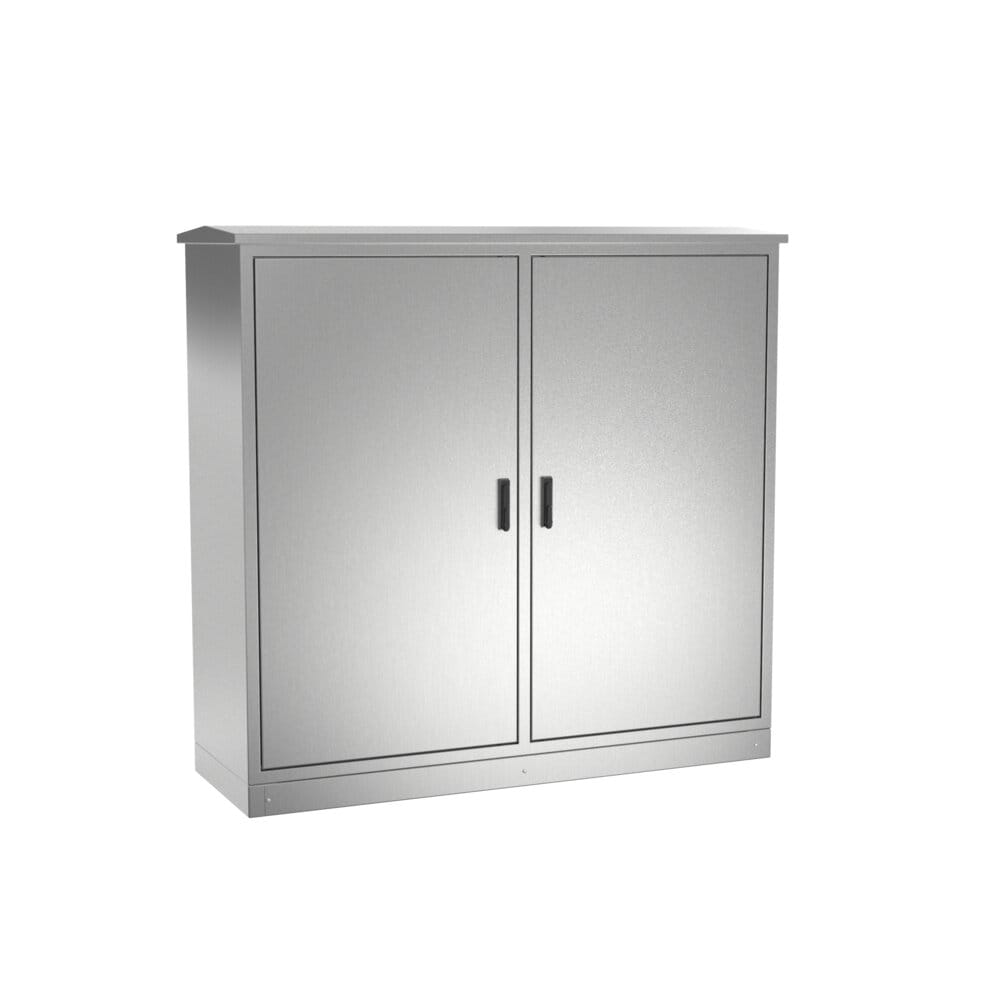

Outdoor cabinet antiposter, specially designed for public lighting, urban furniture, city hall, shopping centers, buildings… Its design with rumble strips prevents the sticking of posters. It is also aesthetically more elegant.
Outdoor cabinet antiposter, specially designed for public lighting, urban furniture, city hall, shopping centers, buildings… Its design with rumble strips prevents the sticking of posters. It is also aesthetically more elegant.
| Minimum Measurements | A=1000-1200mm B=600-800mm P=320-500mm |
|---|---|
| Maximum Double Door Measurements | A=2200mm B=2400mm P=500mm |
| Minimum Plate Measurements | A=870-2070mm |
| Minimum Plate Measurements | B=475-2270mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Opening | 120 ° |
| Door Type | Blind door |
| Opening Type | Swivel with concealed hinges |
| Closing System | Rotary handle |
| Useful Depth | 297.5-477.5 mm |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Plate Material | Galvanized |
| Sealing Gasket | Polyurethane |
| Working Temperature | -40°C a +100°C (reducida exposición +160ºC) |
| Maximum Voltage | 1000 V |
| Alternative Materials | AISI 316L, Galvanized, Aluminum |
|---|---|
| Alternative Finishes | Painted RAL 7035 |
| Interior Plate Material | Stainless steel mounting plate, Insulating mounting plate (Bakelite) |
| Alternative Gaskets | EMC, silicone (-60°C to +180°C) |
| Machinable Area | Puerta: 858.5x412.8-2000x555.3, Lateral: 990x310-2190x490 |
