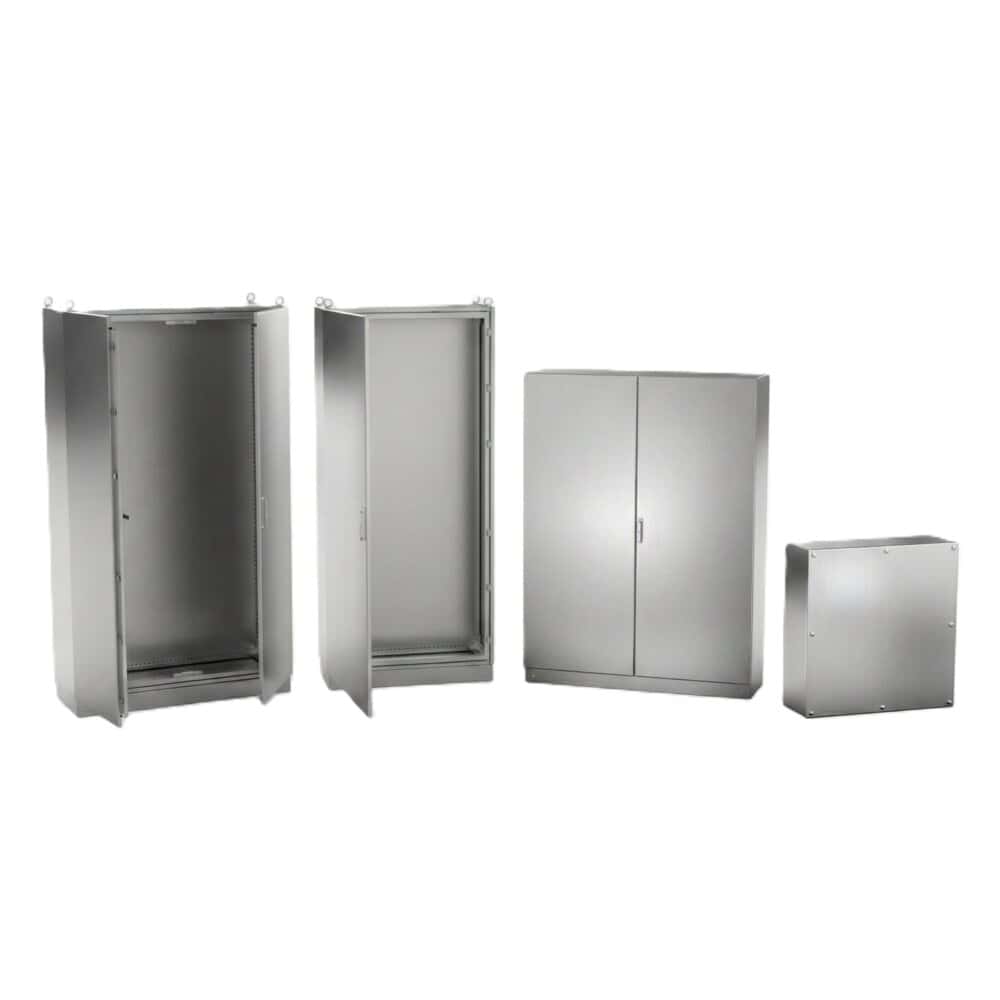

Nema enclosures in non Hazardous Locations, the specific enclosure types, their applications, and the environmental conditions they are designed to protect against, when completely and properly installed are as follows.
Nema 1, Nema 2, Nema 3, Nema 3R, Nema 3S. Approved Products: Luxor, Geo, Tribeca and Titan.
|
REFERENCES 1 DOOR |
DIMENSIONS (mm) |
|||||||||
|
SOLID DOOR (x) |
HEIGHT -A- |
WIDTH -B- |
DEPTH -C- |
ACCESS OPENING -GxH- |
USEFUL DEPTH -D- |
MACHINABLE AREA |
PLATE DIMENSIONS -ExF- |
WEIGHT (Kg) |
VOLUME (m³) |
|
|
DOOR |
SIDE |
|||||||||
|
HDT166040 |
1650 |
600 |
400 |
1447×500 |
375,5 |
1424×487,8 |
1614,8×344 |
1520×490 |
70,9 |
0,42 |
|
HDT167040 |
1650 |
700 |
400 |
1447×600 |
375,5 |
1424×587,8 |
1614,8×344 |
1520×590 |
82,7 |
0,49 |
|
HDT168040 |
1650 |
800 |
400 |
1447×700 |
375,5 |
1424×687,8 |
1614,8×344 |
1520×690 |
94,5 |
0,56 |
|
HDT161040 |
1650 |
1000 |
400 |
1447×900 |
375,5 |
1424×887,8 |
1614,8×344 |
1520×890 |
111,4 |
0,66 |
|
HDT161050 |
1650 |
1000 |
500 |
1447×900 |
475,5 |
1424×887,8 |
1766×444 |
1520×890 |
120,5 |
0,85 |
|
HDT186040 |
1800 |
600 |
400 |
1597×500 |
375,5 |
1574×487,8 |
1764,8×344 |
1670×490 |
77,65 |
0,46 |
|
HDT187040 |
1800 |
700 |
400 |
1597×600 |
375,5 |
1574×587,8 |
1764,8×344 |
1670×590 |
91,12 |
0,53 |
|
HDT188040 |
1800 |
800 |
400 |
1597×700 |
375,5 |
1574×687,8 |
1764,8×344 |
1670×690 |
102,97 |
0,81 |
|
HDT181040 |
1800 |
1000 |
400 |
1597×800 |
375,5 |
1574×887,8 |
1764,8×344 |
1670×890 |
126,6 |
0,75 |
|
HDT181050 |
1800 |
1000 |
500 |
1597×900 |
475,5 |
1574×887,8 |
1966×444 |
1670×890 |
130,68 |
0,93 |
|
HDT206040 |
2000 |
600 |
400 |
1797×500 |
375,5 |
1774×487,8 |
1964,8×344 |
1870×490 |
86,09 |
0,51 |
|
HDT207040 |
2000 |
700 |
400 |
1797×600 |
375,5 |
1774×587,8 |
1964,8×344 |
1870×590 |
94,13 |
0,59 |
|
HDT208040 |
2000 |
800 |
400 |
1797×700 |
375,5 |
1774×687,8 |
1964,8×344 |
1870×690 |
102,97 |
0,64 |
