Outdoor Tornado EMC Series IP55 Rack
Tornado EMC Series

EMC enclosures with an EPDM conductive gasket between frame and contact surface, ensure a perfect electrical connection and superior shielding.

It meets all standards required to ensure total safety in electrical installations. Furthermore each component has passed tests carried out under extreme conditions.

Outdoor Tornado EMC Series IP55 Rack · Delvalle BoxDelvalle Box

Description

EMC enclosures with an EPDM conductive gasket between frame and contact surface, ensure a perfect electrical connection and superior shielding.

It meets all standards required to ensure total safety in electrical installations. Furthermore each component has passed tests carried out under extreme conditions.

Features improved design and materials, robustness, easy opening, smooth-turning lock, flexibility, maximum door opening (up to 120°), maximum working width for your assemblies, easily dismountable, unique features for great

performance and highly polished surface..We recommend plinths at base for cable entry in Tribeca.

Outdoor ROAD series enclosure, designed to be placed in urban or interurban areas, protecting the electronic equipment needed for lighting, signage
and video surveillance. Its application range is extended with external telecommunication installations, telephones, computers, weather stations and any other application that needs extra protection. The ROAD series is characterized by its high resistance to corrosion and wear, ideal for placement in cities and highways, spacious interior; thanks to its construction, it achieves greater width
and height than the rest. Provided with approved water repellent injected seals on exterior doors allowing for tightness and stabilising an ideal temperature for placement in areas of extreme temperature or hostile weather environments.
Made of stainless steel AISI 304L (EN 14306) wiyh polyester paint finish, and features a handle made of a material highly resistant to vandalism and
forced openings. The interior design allows easy placement of racks, mounting plates or separators.



Achieve all the safety and security you need

  • Logo CE · Delvalle Box
    CE
  • Logo EMC · Delvalle Box
    EMC
  • Logo IP43 · Delvalle Box
    IP43
  • Logo IP54 · Delvalle Box
    IP54
  • Logo IP55 · Delvalle Box
    IP55
  • Logo IP66 · Delvalle Box
    IP66
  • Logo ROHS · Delvalle Box
    ROHS
  • Logo UL NEMA 1 · Delvalle Box
    UL NEMA 1
  • Logo UL NEMA 12 · Delvalle Box
    UL NEMA 12
  • Logo UL NEMA 3R · Delvalle Box
    UL NEMA 3R
  • Logo UL NEMA 4X · Delvalle Box
    UL NEMA 4X
  • Logo 10 year anti-corrosion · Delvalle Box
    10 year anti-corrosion
  • Logo 5 year mechanical parts · Delvalle Box
    5 year mechanical parts
  • Logo Anti grafiti option · Delvalle Box
    Anti grafiti option
  • Logo Chemical resistant · Delvalle Box
    Chemical resistant
  • Logo Corrosion resistant · Delvalle Box
    Corrosion resistant
  • Logo Easy to clean · Delvalle Box
    Easy to clean
  • Logo Scrach resistant · Delvalle Box
    Scrach resistant
  • Logo Temperature resistant · Delvalle Box
    Temperature resistant
  • Logo Waterproof · Delvalle Box
    Waterproof

Discover the advantages

EMC joint EPDM conductive coated with Cu and Sn and 60 shore hardness.
Electromagnetically protected.
Delivery with protective film that prevents scratches and abrasions during handling.
Compact design offering complete protection and resistance to impact.
With a drainage channels which prevents liquid contact with the EPDM gasket and with concealed hinges.
Delvalle can make any size to suit to your needs.
Meets EMC, RFI and EMI standards.
Ver y good mechanical proper ties and high resistance to shape distorsion.
With water repellent injected seal.
Door retained with stoppers.
The enclosure includes anti-vandalism locks and handles suitable for semi-cylindrical profile locks.
Maintenance free for life over 30 years.
Delvalle can adapt this design to the measurements required by the client, retaining the fundamentals of insulation, sealing and safety.
Strength, durability and long life.
High resistance to vandalism.
Specially designed for urban and interurban areas, roads or highways.
High resistance to corrosion and wear.
Large space inside for Rack equipments.
Two versions: galvanized steel and painted galvanized steel.

Regulations

• From IP43 to IP66 . Norm IEC EN 62208 and EN 60529/10.91.

  • IP43 with ventilation brackets
  • IP54 with vent grille
  • IP66 without ventilation

• IP55 Norm EN 62208 and EN 60529.
• Maximum IK10 resistance Norm IEC 62208 and EN 50102
• En 61969-3 Mechanical Structures for Electronic Equipment - outdoor enclosures -.
• IEC 60068-2-30 and IEC 60068-2-11
• Built to CE standards. 2006/95/CE
• UL Nema 4x, 12, 1, 3r by request. NºFile E342220.
• Shock resistant against sharp objects EN 60439-5
• RoHs compliant.
• Maximum voltage 1000 V.
• Temperature resistant: -40°C +100°C (short time +160°C).
• Option silicone gasket: from -60°C to +180°C (short time up to +350°C).



Applications

Especially designed for telecommunications, railway signals, airtraffic signals, medical and military industries or where extra protection against electromagnetic interference is needed.

Custom Made Solutions
We offer multiple solutions

Outdoor Tornado EMC Series IP55 Rack · Delvalle Box
Do you need solutions?
2017 product catalogues

• Designs and pictures available on request.
• Plinths at base for enclosures of any size. They allow enclosures to stand over the floor, with extra room for cable entry. Available 100mm (standard) and 200mm high.
• Stainless steel AISI 316L, EN 1.4404.
Ventilation KIT (Fan, resistance heating and dual thermostat)
• Graffiti-proof protective paint
• EMC version according to EEC 89/336 of electromagnetic compatibility.

Customize this product with the following components:
EMC Electric Cabinets Luxor · Delvalle BoxDelvalle Box
EMC enclosures with an EPDM conductive gasket between frame and contact surface, ensure a perfect...
EMC Electric Cabinets Tribeca · Delvalle BoxDelvalle Box
EMC enclosures with an EPDM conductive gasket between frame and contact surface, ensure a perfect...
EMC filter fans IP54-55 PRIUS · Delvalle BoxDelvalle Box
EMC fan with fitted filter and EMC conductive gasket. High performance, low power, and silent...
EMC Terminal Push Button Boxes Geo · Delvalle BoxDelvalle Box
 EMC Terminal Push Button Boxes GEO...
Metric EMC Nickel Plated Cable Glands IP68 · Delvalle BoxDelvalle Box
Metric EMC nickel plated cable glands IP68 are made of stainless steel AISI 304 and allow...
Metric EMC Stainless Steel Cable Glands IP68 · Delvalle BoxDelvalle Box
Metric EMC stainless steel cable glands IP68 are made of stainless steel AISI 304 and allow...
Outdoor Rack EMC IP55 19 Storm · Delvalle BoxDelvalle Box
Outdoor telecom 19" rack cabinet Storm Series enclosure EMC, designed to be placed in...
Outdoor Tornado EMC Series IP55 Rack · Delvalle Box

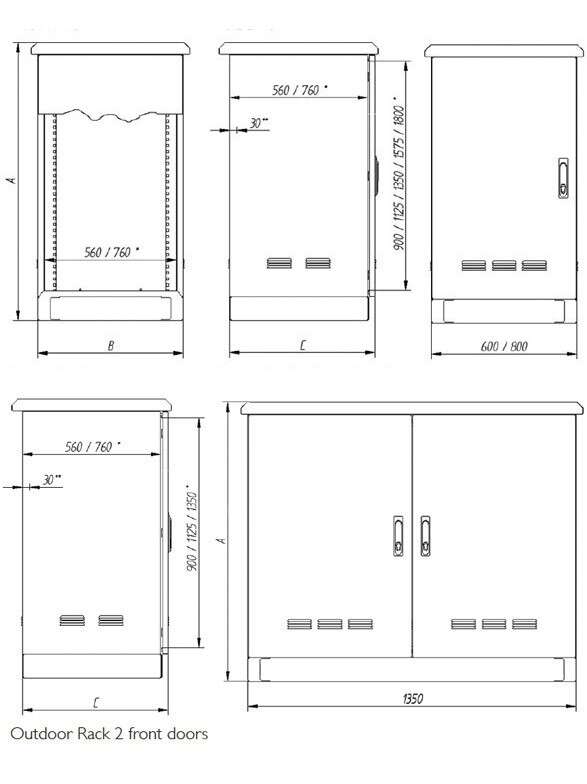

Sketches

Outdoor Tornado EMC Series IP55 Rack · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
TR116080MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 20U1185600800TR116080M
TR116060MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 20U1185600600TR116060M
TR118080MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 20U1185800800TR118080M
TR118060MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 20U1185800600TR118060M
TR136080MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 25U1385600600TR136080M
TR136060MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 25U1385600600TR136060M
TR138080MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 25U1385800800TR138080M
TR138060MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 25U1385800600TR138060M
TR156080MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 30U1585600800TR156080M
TR156060MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 30U1585600600TR156060M
TR158080MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 30U1585800800TR158080M
TR158060MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 30U1585800600TR158060M
TR186080MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 30U1885600800TR186080M
TR186060MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 30U1885600600TR186060M
TR188080MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 35U1885800800TR188080M
TR188060MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 35U1885800600TR188060M
TR206080MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 40U2060600800TR206080M
TR206060MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 40U2060600600TR206060M
TR208080MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 40U2060800800TR208080M
TR208060MRACK OUTDOOR EMC TORNADO SERIES IP55 ENCLOSURE. Stainless steel, Rack 40U2060800600TR208060M
TRAL116080MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 20U1185600800TRAL116080M
TRAL116060MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 20U1185600600TRAL116060M
TRAL118080MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 20U1185800800TRAL118080M
TRAL118060MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 20U1185800600TRAL118060M
TRAL136080MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 25U1185600800TRAL136080M
TRAL136060MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 25U1385600600TRAL136060M
TRAL138080MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 25U1385800800TRAL138080M
TRAL138060MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 25U1385800600TRAL138060M
TRAL156080MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 30U1585600800TRAL156080M
TRAL156060MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 30U1585600600TRAL156060M
TRAL158080MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 30U1585800800TRAL158080M
TRAL158060MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 30U1585800600TRAL158060M
TRAL186080MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 30U1885600800TRAL186080M
TRAL186060MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 30U1885600600TRAL186060M
TRAL188080MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 35U1885800800TRAL188080M
TRAL188060MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 35U1885800600TRAL188060M
TRAL206080MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 40U2060600800TRAL206080M
TRAL206060MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 40U2060600600TRAL206060M
TRAL208080MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 40U2060800600TRAL208080M
TRAL208060MRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 40U2060800600TRAL208060M
TRG116080MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 20U1185600800TRG116080M
TRG116060MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 20U1185600600TRG116060M
TRG118080MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 20U1185800800TRG118080M
TRG118060MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 20U1185800600TRG118060M
TRG136080MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 25U1385600800TRG136080M
TRG136060MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 25U1385600600TRG136060M
TRG138080MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 25U1385800800TRG138080M
TRG138060MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 25U1385800600TRG138060M
TRG156080MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 30U1585600800TRG156080M
TRG156060MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 30U1585600600TRG156060M
TRG158080MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 30U1585800800TRG158080M
TRG158060MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 30U1585800600TRG158060M
TRG186080MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 30U1885600800TRG186080M
TRG186060MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 30U1885600600TRG186060M
TRG188080MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 35U1885800800TRG188080M
TRG188060MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 35U1885800600TRG188060M
TRG206080MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 40U2060600800TRG206080M
TRG206060MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 40U2060600600TRG206060M
TRG208080MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 40U2060800800TRG208080M
TRG208060MRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 40U2060800600TRG208060M
TR111380DMRACK OUTDOOR EMC TORNADO SERIES IP55. Stainless steel, Rack 20U. 2 doors11601350800TR111380DM
TR111360DMRACK OUTDOOR EMC TORNADO SERIES IP55. Stainless steel, Rack 20U. 2 doors11601350600TR111360DM
TR131380DMRACK OUTDOOR EMC TORNADO SERIES IP55. Stainless steel, Rack 25U. 2 doors13851350800TR131380DM
TR131360DMRACK OUTDOOR EMC TORNADO SERIES IP55. Stainless steel, Rack 25U. 2 doors13851350600TR131360DM
TR161380DMRACK OUTDOOR EMC TORNADO SERIES IP55. Stainless steel, Rack 30U. 2 doors16101350800TR161380DM
TR161360DMRACK OUTDOOR EMC TORNADO SERIES IP55. Stainless steel, Rack 30U. 2 doors16101350600TR161360DM
TR181380DMRACK OUTDOOR EMC TORNADO SERIES IP55. Stainless steel, Rack 35U. 2 doors18351350800TR181380DM
TR181360DMRACK OUTDOOR EMC TORNADO SERIES IP55. Stainless steel, Rack 35U. 2 doors18351350600TR181360DM
TRAL111380DMRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 20U11601350800TRAL111380DM
TRAL111360DMRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 20U11601350600TRAL111360DM
TRAL131380DMRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 25U13851350800TRAL131380DM
TRAL131360DMRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 25U13851350600TRAL131360DM
TRAL161380DMRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 30U16101350800TRAL161380DM
TRAL161360DMRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 30U16101350600TRAL161360DM
TRAL181380DMRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 35U18351350800TRAL181380DM
TRAL181360DMRACK OUTDOOR EMC TORNADO SERIES IP55. Aluminum, Rack 35U18351350600TRAL181360DM
TRG111380DMRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 20U11601350800TRG111380DM
TRG111360DMRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 20U11601350600TRG111360DM
TRG131380DMRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 20U13851350800TRG131380DM
TRG131360DMRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 25U13851350600TRG131360DM
TRG161380DMRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 30U16101350800TRG161380DM
TRG161360DMRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 30U16101350600TRG161360DM
TRG181380DMRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 35U18351350800TRG181380DM
TRG181360DMRACK OUTDOOR EMC TORNADO SERIES IP55. Galvanized, Rack 35U18351350600TRG181360DM
New Metro Line in Guadalajara (Mexico) · Delvalle Box
The construction of line 3 of Guadalajara subway (Mexico) has began. This is one of the most...
New port of Doha · Delvalle Box
Delvalle are suppliers to the firms making this new port on Doha, capital of Qatar....
Autopista C-16 · Delvalle Box
At Delvalle we are suppliers of outdoor electrical cabinets for protecting the C-16 data...
AVE MONFORTE DEL CID – MURCIA · Delvalle Box
We are the supplier of the electrical cabinets for the high speed rail line between Monforte and...
DANONE YOGURT FACTORY IN EEUU OHIO · Delvalle Box
We supply stainless steel enclosures hygienic design series this factory, one of the highest north...
Wikinger, The largest Deep sea offshore windfarm · Delvalle Box
At Delvalle we have customized a solution to guarantee the sealing and maximum resistance in such a...
Nuclear Power Stations · Delvalle Box
Delvalle is very conscious to any possible risks that may have nuclear power.
ENLARGEMENT OF THE PORT OF BARCELONA · Delvalle Box
A special and different port. Commercial, citizen, energy and logistical use.
Oran Tamway (Algeria) · Delvalle Box
We supplied cabinets meeting the demanding French specifications.
Ferrovial tunnel under the Marmara Sea · Delvalle Box
Delvalle built custom cabinets that passed an electromagnetic tests.
AVE Madrid-Valencia · Delvalle Box
Electrical cabinets for transmission of a multitude of data to the main data centre.
The Panama Channel Expansion Project · Delvalle Box
Manufacture and installation of watertight and hurricanes resistant IP67 nema 4x enclosures....
Kuwait desalination plant · Delvalle Box
Special cabinets to support the special characteristics of this harsh desert area.
