Outdoor rack tornado EMC IP66

EMC

Outdoor rack Tornado EMC IP55 with an EPDM conductive gasket between frame and contact surface, ensure a perfect electrical connection and superior shielding.

It meets all standards required to ensure total safety in electrical installations. Furthermore each component has passed tests carried out under extreme conditions.

EMC 2014/30/UE Certified

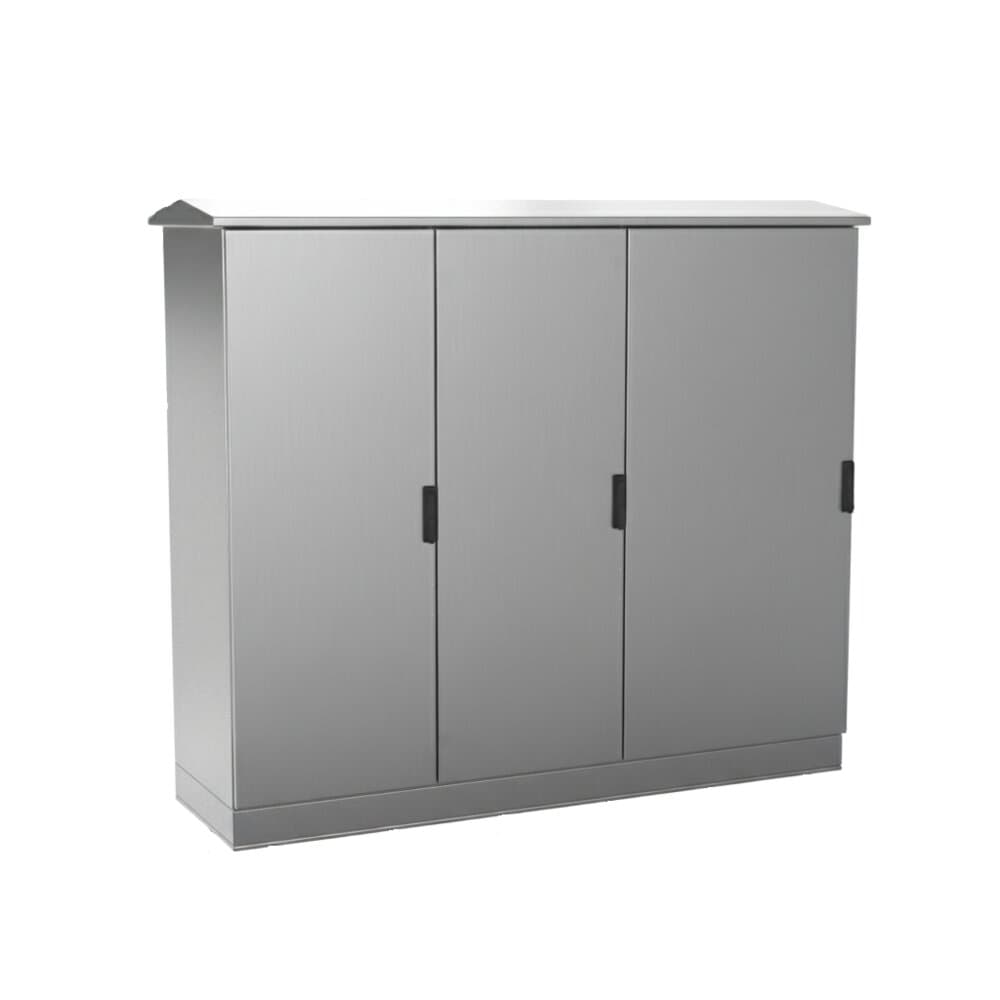

Outdoor rack tornado EMC: main view of the product

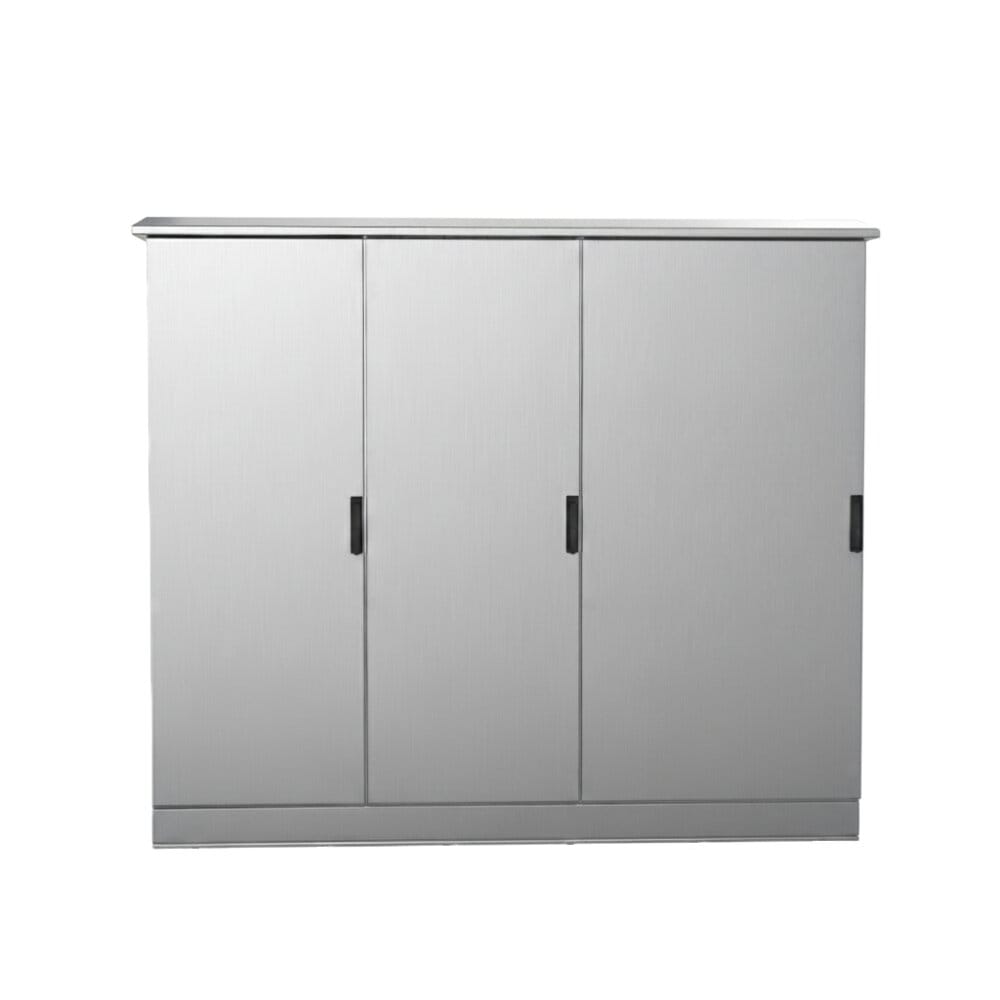

Outdoor rack tornado EMC: detail view of the product

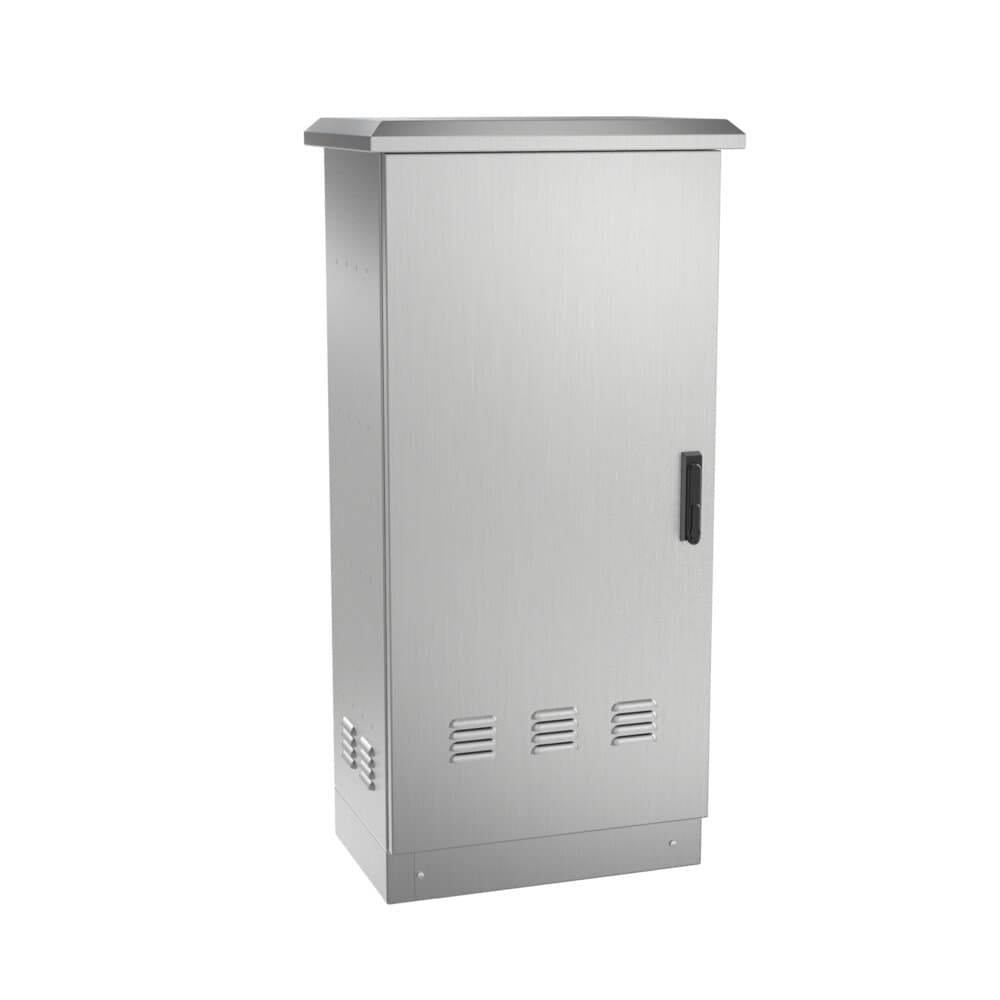

Outdoor rack tornado EMC: additional view of the product

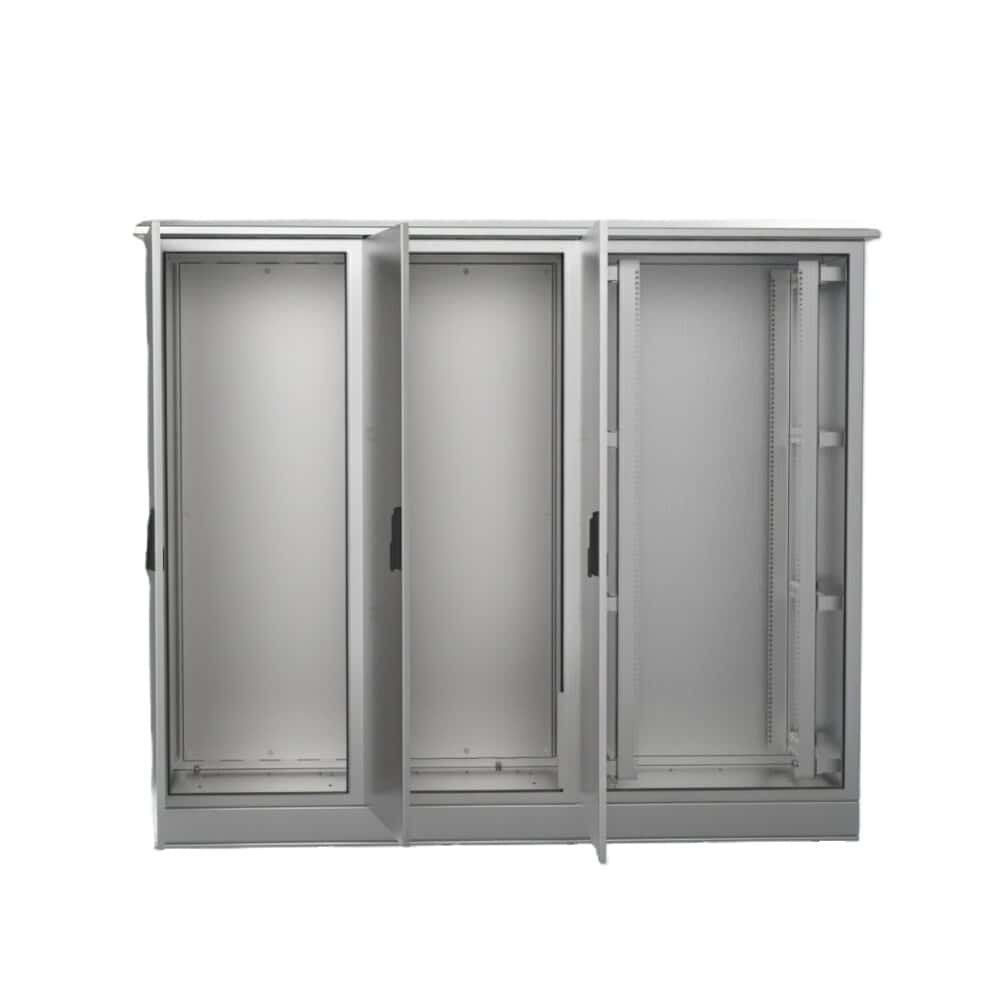

Outdoor rack tornado EMC: side view of the product

TECHNICAL DATA

Minimum Measurements	A=1185-2060mm B=600-800mm P=800-600mm
Maximum Double Door Measurements	A=1835mm B=1350mm P=600mm
Minimum Plate Measurements	A=965-1840mm
Minimum Plate Measurements	B=530-730mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Opening	120 °
Door Type	Blind door
Opening Type	Swivel with concealed hinges
Closing System	Rotary handle
Material	AISI 304L/AISI 316L
Finish	Satin finish
Sealing Gasket	EMC
Working Temperature	-40°C a +100°C (reducida exposición +160ºC)
Maximum Voltage	1000 V

ALTERNATIVE OPTIONS

Alternative Materials	AISI 316L, Galvanized, Aluminum
Alternative Finishes	Painted RAL 7035
Alternative Gaskets	Polyurethane, silicone (-60°C to +180°C)

At Delvalle we can adapt this design to the size required by the client while maintaining the fundamentals of thermal insulation, watertightness, security, and easy installation

In 19” or 21”, depending on the rack bracket mounting method

Ventilation Kit: Composed of Air Exhaust Fan, Dual Thermostat, and Heating Element

canopies with extra ventilation

200 mm Base

Possibility of incorporating a climate control unit attached to the side or roof

Optional rackless and with trays service

Cabinets with 1 or 2 doors

Complete range of accessories available

Degree of protection: up to IP66

The cable tray can incorporate micro cuts for subsequent installation of cable glands

The best outdoor telecommunications rack cabinet system on the market

Earthquakes and Controlled Vibration

Load capacity

thermoinsulated and self-ventilated system

Approved Waterproof Gasket, UL Certified, on Exterior Doors

Maximum security against vandalism and forced opening by means of levers

Closed Anti-vandal Socket

Electrical Cabinet for Critical Environments

Areas with extreme temperatures or hostile environments

Desert, Tropical, High Mountain Areas

Delvalle cabinets with IP55 certification

Regulación para los gabinetes eléctricos Delvalle

EN 50102

Voltage withstand capacity of cabinets

Delvalle cabinets silicone gaskets temperature resistance

EN 61969-3

UL NEMA 4X, 12, 3R, and 1 standards certification

REFERENCES 1 DOOR				DIMENSIONS (mm)
STAINLESS STEEL	ALUMINUM	GALVANIZED STEEL	DESCRIPTION	HEIGHT -A-	WIDTH -B-	DEPTH -C-	MACHINABLE AREA		PLATE DIMENSIONS -ExF-
STAINLESS STEEL	ALUMINUM	GALVANIZED STEEL	DESCRIPTION	HEIGHT -A-	WIDTH -B-	DEPTH -C-	DOOR	SIDE	PLATE DIMENSIONS -ExF-
TRI116080M	TRAL116080M	TRG116080M	TORNADO 20 U	1185	600	800	905×430	925×715	965×530
TRI116060M	TRAL116060M	TRG116060M	TORNADO 20 U	1185	600	600	905×430	925×515	965×530
TRI118080M	TRAL118080M	TRG118080M	TORNADO 20 U	1185	800	800	905×630	925×715	965×730
TRI118060M	TRAL118060M	TRG118060M	TORNADO 20 U	1185	800	600	905×630	925×515	965×730
TRI136080M	TRAL136080M	TRG136080M	TORNADO 25 U	1385	600	800	1105×430	1125×715	1165×530
TRI136060M	TRAL136060M	TRG136060M	TORNADO 25 U	1385	600	600	1105×430	1125×515	1165×530
TRI138080M	TRAL138080M	TRG138080M	TORNADO 25 U	1385	800	800	1105×630	1125×715	1165×730
TRI138060M	TRAL138060M	TRG138060M	TORNADO 25 U	1385	800	600	1105×630	1125×515	1165×730
TRI156080M	TRAL156080M	TRG156080M	TORNADO 30 U	1585	600	800	1305×430	1325×715	1165×730
TRI156060M	TRAL156060M	TRG156060M	TORNADO 30 U	1585	600	600	1305×430	1325×515	1165×730
TRI158080M	TRAL158080M	TRG158080M	TORNADO 30 U	1585	800	800	1305×630	1325×715	1365×530
TRI158060M	TRAL158060M	TRG158060M	TORNADO 30 U	1585	800	600	1305×630	1325×515	1365×530
TRI186080M	TRAL186080M	TRG186080M	TORNADO 35 U	1885	600	800	1555×430	1575×715	1615×530
TRI186060M	TRAL186060M	TRG186060M	TORNADO 35 U	1885	600	600	1555×430	1575×515	1615×530
TRI188080M	TRAL188080M	TRG188080M	TORNADO 35 U	1885	800	800	1555×630	1575×715	1615×730
TRI188060M	TRAL188060M	TRG188060M	TORNADO 35 U	1885	800	600	1555×630	1575×515	1615×730
TRI206080M	TRAL206080M	TRG206080M	TORNADO 40 U	2040	600	800	1780×430	1800×715	–
TRI206040M	TRAL206040M	TRG206060M	TORNADO 40 U	2060	600	600	1780×430	1800×515	1840×530
TRI208080M	TRAL208080M	TRG208080M	TORNADO 40 U	2060	800	800	1780×630	1800×715	1840×730
TRI208060M	TRAL208060M	TRG208060M	TORNADO 40 U	2060	800	600	1780×630	1800×515	1840×730

REFERENCES 2 DOORS				DIMENSIONS (mm)
STAINLESS STEEL	ALUMINUM	GALVANIZED STEEL	DESCRIPTION	HEIGHT -A-	WIDTH -B-	DEPTH -C-
TRI11380DM	TRAL11380DM	TRG11380DM	20 U	1160	1350	800
TRI11360DM	TRAL11360DM	TRG11360DM	20 U	1160	1350	600
TRI131380DM	TRAL131380DM	TRG131380DM	25 U	1385	1350	800
TRI131360DM	TRAL131360DM	TRG131360DM	25 U	1385	1350	600
TRI161380DM	TRAL161380DM	TRG161380DM	30 U	1610	1350	800
TRI161360DM	TRAL161360DM	TRG161360DM	30 U	1610	1350	600
TRI181380DM	TRAL181380DM	TRG181380DM	35 U	1835	1350	800
TRI181360DM	TRAL181360DM	TRG181360DM	35 U	1835	1350	600
