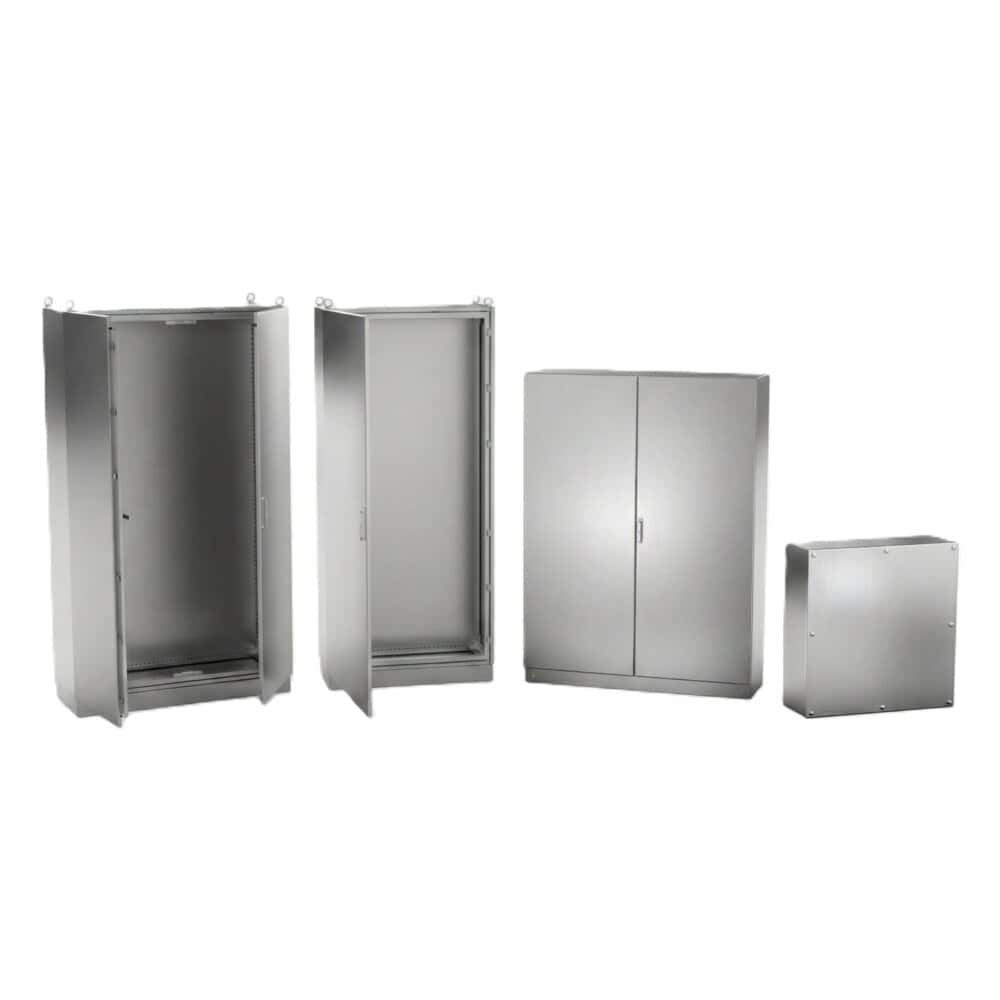

Nema 3X, Nema 3RX, Nema 3SX, Nema 4 and Nema 4X.
Approved Products: Luxor, Geo, Tribeca and Titan.
Nema 3X, Nema 3RX, Nema 3SX, Nema 4 and Nema 4X.
Approved Products: Luxor, Geo, Tribeca and Titan.
| REFERENCES 1 DOOR | DIMENSIONS (mm) | |||||||||||
| SOLID DOOR (x) | POLYCARBONATE DOOR (not IP69K) | POLYCARBONATE DOOR + INNER DOOR (not IP69K) | HEIGHT -A- | WIDTH -B- | DEPTH -C- | ACCESS OPENING -GxH- | USEFUL DEPTH -D- | MACHINABLE AREA | PLATE DIMENSIONS -ExF- | WEIGHT (Kg) | VOLUME (m³) | |
| DOOR | SIDE | |||||||||||
| MVAB302015 | MVAB302015T | MVAB302015TC | 300 | 200 | 155 | 260×153 | 125 | 220×76 | 270×125 | 264×147 | 4,65 | 0,01 |
| MVAB383015 | MVAB383015T | MVAB383015TC | 380 | 300 | 155 | 340×253 | 125 | 300×176 | 350×125 | 344×247 | 7,68 | 0,02 |
| MVAB383021 | MVAB383021T | MVAB383021TC | 380 | 300 | 210 | 340×253 | 180 | 300×176 | 350×180 | 344×247 | 8,57 | 0,03 |
| MVAB404021 | MVAB404021T | MVAB404021TC | 400 | 400 | 210 | 360×353 | 180 | 320×276 | 370×180 | 364×347 | 11,12 | 0,04 |
| MVAB504021 | MVAB504021T | MVAB504021TC | 500 | 400 | 210 | 460×353 | 180 | 420×276 | 470×180 | 464×347 | 13,51 | 0,05 |
| MVAB505021 | MVAB505021T | MVAB505021TC | 500 | 500 | 210 | 460×453 | 180 | 420×376 | 470×180 | 464×447 | 16,2 | 0,06 |
| MVAB705021 | MVAB705021T | MVAB705021TC | 700 | 500 | 210 | 660×453 | 180 | 620×376 | 670×180 | 664×447 | 21,55 | 0,08 |
| MVAB604021 | MVAB604021T | MVAB604021TC | 600 | 400 | 210 | 560×353 | 180 | 520×276 | 570×180 | 564×347 | 15,74 | 0,06 |
| MVAB605021 | MVAB605021T | MVAB605021TC | 600 | 500 | 210 | 560×453 | 180 | 520×376 | 570×180 | 564×447 | 18,88 | 0,07 |
| MVAB606021 | MVAB606021T | MVAB606021TC | 600 | 600 | 210 | 560×553 | 180 | 520×476 | 570×180 | 564×547 | 22 | 0,08 |
| MVAB806030 | MVAB806030T | MVAB806030TC | 800 | 600 | 300 | 760×553 | 270 | 720×476 | 770×270 | 764×547 | 31,35 | 0,16 |
| MVAB808030 | MVAB808030T | MVAB808030TC | 800 | 800 | 300 | 760×753 | 270 | 720×676 | 770×270 | 764×747 | 41,5 | 0,21 |
| MVAB108030 | MVAB108030T | MVAB108030TC | 1000 | 800 | 300 | 960×753 | 270 | 920×676 | 970×270 | 964×747 | 50,69 | 0,26 |
| MVAB128030 | MVAB128030T | MVAB128030TC | 1200 | 800 | 300 | 1160×753 | 270 | 1120×676 | 1170×270 | 1164×747 | 59,47 | 0,31 |
| MVAB101030 | MVAB101030T | MVAB101030TC | 1000 | 1000 | 300 | 960×953 | 270 | 920×876 | 970×270 | 964×947 | 61,17 | 0,32 |
| MVAC121030 | MVAC121030T | MVAC121030TC | 1200 | 1000 | 300 | 1090×890 | 275 | 1000×790 | 1170×265 | 1070×870 | 78,82 | 0,46 |
| MVAC101230 | MVAC101230T | MVAC101230TC | 1000 | 1200 | 300 | 890×1090 | 275 | 800×990 | 970×265 | 870×1070 | 78,76 | 0,39 |
| MVAC121230 | MVAC121230T | MVAC121230TC | 1200 | 1200 | 300 | 1000×1000 | 275 | 1000×990 | 1170×265 | 1070×1070 | 92,09 | 0,39 |
| REFERENCES 2 DOORS | DIMENSIONS (mm) | |||||||
| SOLID DOOR (x) | HEIGHT -A- | WIDTH -B- | DEPTH -C- | ACCESS OPENING -GxH- | USEFUL DEPTH -D- | MACHINABLE AREA | PLATE DIMENSIONS -ExF- | |
| DOOR | SIDE | |||||||
| MVAB806030D | 800 | 600 | 300 | 746×546 | 270 | 720×217.5 and 720×173.5 | 720×240 | 740×540 |
| MVAB808030D | 800 | 800 | 300 | 746×746 | 270 | 720×317.5 and 720×273.5 | 720×240 | 740×740 |
| MVAB108030D | 1000 | 800 | 300 | 946×746 | 270 | 920×317.5 and 920×273.5 | 970×240 | 940×740 |
| MVAB128030D | 1200 | 800 | 300 | 1146×746 | 270 | 1120×317.5 and 1120×273.5 | 1170×240 | 1140×740 |
| MVAB101030D | 1000 | 1000 | 300 | 946×946 | 270 | 920×417.5 and 920×373.5 | 970×240 | 940×940 |
| MVAB121030D | 1200 | 1000 | 300 | 1146×946 | 270 | 1120×617.5 and 1120×573.5 | 1170×240 | 1140×940 |
| MVAB121230D | 1200 | 1200 | 300 | 1146×1146 | 270 | 1120×717.5 and 1120×673.5 | 1170×240 | 1140×1140 |
