Roof Fan

Viper Series

Roof Fan, specially designed for extracting heat from the top of the cabinet, for achieving a perfect air fl ow in the inside.

Roof Fan · Delvalle BoxDelvalle Box
Roof Fan · Delvalle BoxDelvalle Box

Description

Roof Fan, specially designed for extracting heat from the top of the cabinet, for achieving a perfect air fl ow in the inside. Easy to install, provides protection from IP44 to IP54 depending on the model. Air fl ow range from 600 m³ to 1.500 m³ per hour, working silent and sealed for both waterproof and dust proof. Performance and durability, 50,000 hours at 40°C, for clean air inside cabinets.



Discover the advantages

Life time +50.000 hours at 40ºC
ECOfriendly: low consumption, high efficiency and very silent.
Mounting screws
Gasket of polyethylene or PVC (depending on model)
Air fl ow direction “inside-out”
Ball bearing maximum engine effi ciency and reliability
Thermal overload protection
Duty cycle 100%
With internal security grid that not allow access to the fan wheel.
The fan is supplied with fi lter desingned for easy clearing and highly resistant.

Regulations

• IP44/ Class I. Norm EN 60529.
• Built under 2006/95/CE of low voltage.
• Operating temperature -10 / +70 ºC
• Material ABS UL94V-O. Colour Ral 7035.
• Life time +50.000 hours at 40ºC.
• Gasket of polythene.

Applications

Specially designed for use in the top of our cabinets creating a perfect cooling in the system electrical and electronic equipement.

Custom Made Solutions
We offer multiple solutions

Roof Fan · Delvalle Box
Do you need solutions?
2021 product catalogues
Customers also bought:
Filter Fans Stainless Steel Prius IP55 · Delvalle BoxDelvalle Box
Built-in filter fan, high performance, low power and soundless, with a slim design (only 4mm) and...
Filter Fans Prius Thermoplastic · Delvalle BoxDelvalle Box
Built-in filter fan made Injected Thermoplastic, high performance, low power and soundless, with a...
Roof Fan Viper IP54 · Delvalle BoxDelvalle Box
Roof Fan, specially designed for extracting heat from the top of the cabinet, for achieving a...
EMC Filter Fans Prius IP55 · Delvalle BoxDelvalle Box
EMC fan with fitted filter and EMC conductive gasket. High performance, low power, and silent...
Filter Fan Stainless Steel  with Casing Prius IP55 · Delvalle BoxDelvalle Box
Built-in filter fan IP55 with special filtering with stainless steel asing, high performance, low...
Stainless Steel Cooling Fan Fanout IP55 · Delvalle BoxDelvalle Box
Axial stainless steel fans are manufactured giving a functional, modern, innovative design with air...
Roof Fan · Delvalle Box

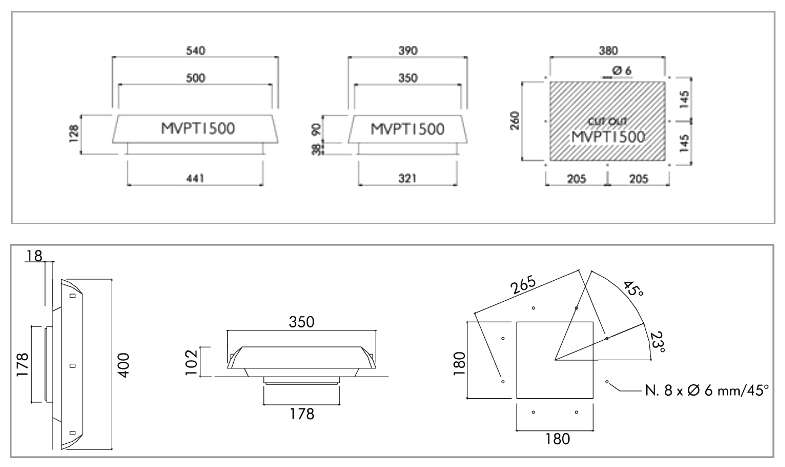

Sketches

Roof Fan · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVPT0600IP44ACaudal 600 m3 /h, 70W, 0,32 A, 230 V/50-60H z350400102MVPT0600IP44A
MVPT0600IP44BCaudal 600 m3 /h, 70W, 0,64 A, 115 V/50-60H z350400102MVPT0600IP44B
MVPT0860IP44ACaudal 860 m3 /h, 85W, 0,43 A, 230 V/50-60H z350400102MVPT0860IP44A
MVPT0860IP44ACaudal 800 m3 /h, 85W, 0,86 A, 115 V/50-60H z350400102MVPT0860IP44A
MVPT1000IP44ACaudal 1000 m3 /h, 120W, 0,50 A, 230 V/50-60H z350400102MVPT1000IP44A
MVPT1000IP44BCaudal 1000 m3 /h, 120W, 1,00 A, 115 V/50-60H z350400102MVPT1000IP44B
"UL"Add "UL " to the reference350400102"UL"
"EMC"Add "EMC " to the reference350400102"EMC"
"IP54"Cambiar "IP44" por "IP54" a la referencia350400102"IP54"
MVPT1500IP44ACaudal 600m3 /h 230 V/50-60Hz, 160W, 0,70A390540128MVPT1500IP44A
MVPT1500IP44BCaudal 1500 m3/h, 115 V/50-60H z, 160w, 1,40A390540128MVPT1500IP44B
