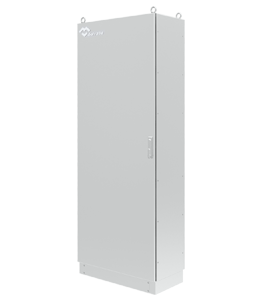

Modular Enclosure Titan IP69K

Modular stainless steel enclosure Titan Series IP69K, stylish and corrosion resistant, completely adaptable, flexible, for food, petrochemical, pharmaceutical industries, electrical use, which require smartness hygiene, sealing and long life.
Our system is a closed profile in stainless steel steel, welded, give greater strength and top quality. The doors sides and rear are hinged and easily removable with 120° opening, thanks to assembly with screws.
All this is achieved with a perfect assembly system where after the construction requested modules are coupled with screws. But the best advantage of this cabinet is the versatility it provides, in Addition to the large number of customized accessories.

This product has the following certificates

Description

Download all documents and certificates

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Discover the advantages

Broad assembly area and great accessibility.
Endless choices, modules and measurements.
Delivery soldier, which gives it great strength.
Side rear, top and bottom panels, easily removable.
100% stainless steel from handle to opening system.

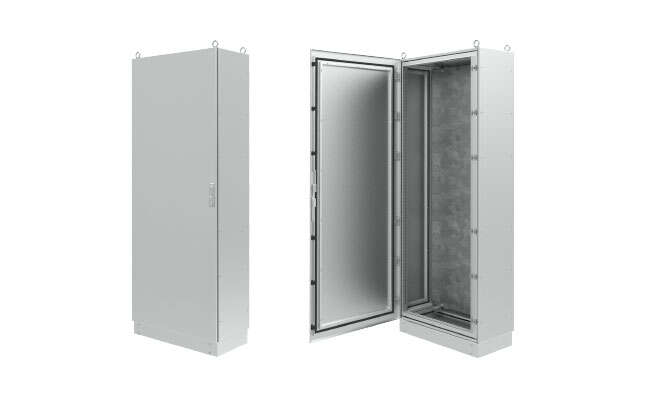

Door opens to 120°.
Standard with three or four width points lock.
Perfect sealing thanks to gaskets used in the joints.
Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.
Distribuited load 1000 kg.

Regulations

IP66 Norm EN 62208 and EN 60529.
DIN 40050-9 - IP69K.
DIN EN ISO 14159 Machine safety – hygiene requirements pertaining to the design of machinery.
Machinery Directive 2006/42/EC. Food machinery and cosmetic or pharmaceutic production.
EHEDG Guideline Hygienic Design doc.13 machinery for open processes.
DIN EN 1672-2:2006 for food industry machinery.
Maximum IK10 resistance Norm IEC 62208 and EN 50102.
Manufactured following EU low voltage ruling 2014/35/UE.
RoHS Directive 2011/65/UE compliant.
UL approval Nema 4x, 12, 3r, 1. Nº File E342220.
Maximum voltage 1000 V.
Temperature resistant: -40°C +100°C (short time +160°C).
Option silicone gasket: from -60°C to +180°C (short time up to +350°C)

Applications

Especially designed for maximum flexibility in use. Thanks to its versatility it can be used in the food and pharmaceuticals industries, where hygiene is essential, as in petrochemical, electrical, industries where total sealing is essential and also in general industrial environments always offering a long life.

Custom Made Solutions
We offer multiple solutions

Do you need solutions?

Delvalle Box has the solution

2021 product catalogues

Download Zone

Custom made based on your needs.

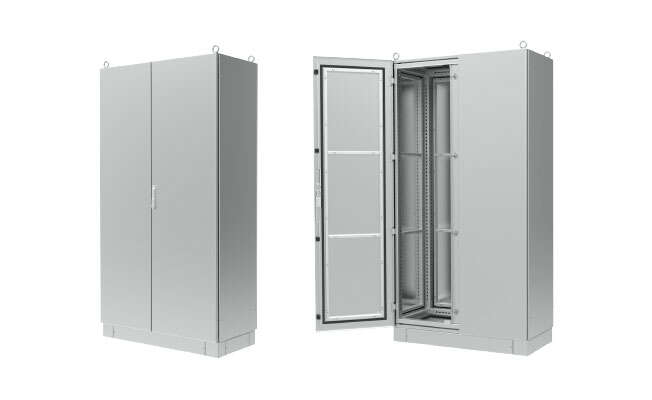

With the possibility to join several modules.
Plinths at base. Swing rack.
Eyebolt (not included in standard model).
All types of ventilation.
Cable entry cover at base.
Metal legs and wheels.
Transparent polycarbonate door, with tempered glass or with safety glass (no IP69K).
Finished in textured paint RAL on request.
Mounting plate insulator (bakelite) or painted steel.
Manufactured in stainless steel AISI 316L.
EMC version according to 2014/30/UE of electromagnetic compatibility.
Option painted galvanized steel finish in RAL 7035 or another color.

Metric Polyamide Cable Glands IP68

Metric polyamide PA66 cable glands IP68 are suitable for the passage, compression and wire binding...

PG Polyamide Cable Glands IP68

PG polyamide PA66 cable glands IP68 are suitable for the passage, compression and wire binding...

Metric Stainless Steel Cable Glands AISI316L

Metric stainless steel cable glands stainless steel AISI 304 and AISI 316 IP68, are suitable for...

Metric Stainless Steel Cable Glands IP68

Metric stainless steel cable glands IP68 are made of stainless steel AISI 304 and AISI 316, are...

Metric Nickel Plated Cable Glands IP68

Metric nickel plated cable glands IP68 are suitable for the passage, compression and wire binding...

Metric Cable Glands Hygienic IP69K

Hygienic glands IP69K are fit for passing, pressing and fixing cables between two compartments such...

Metric Cable Glands IP69K

Metric stainless steel cable glands stainless steel AISI 304, AISI 316 or nickel plated IP69K, are...

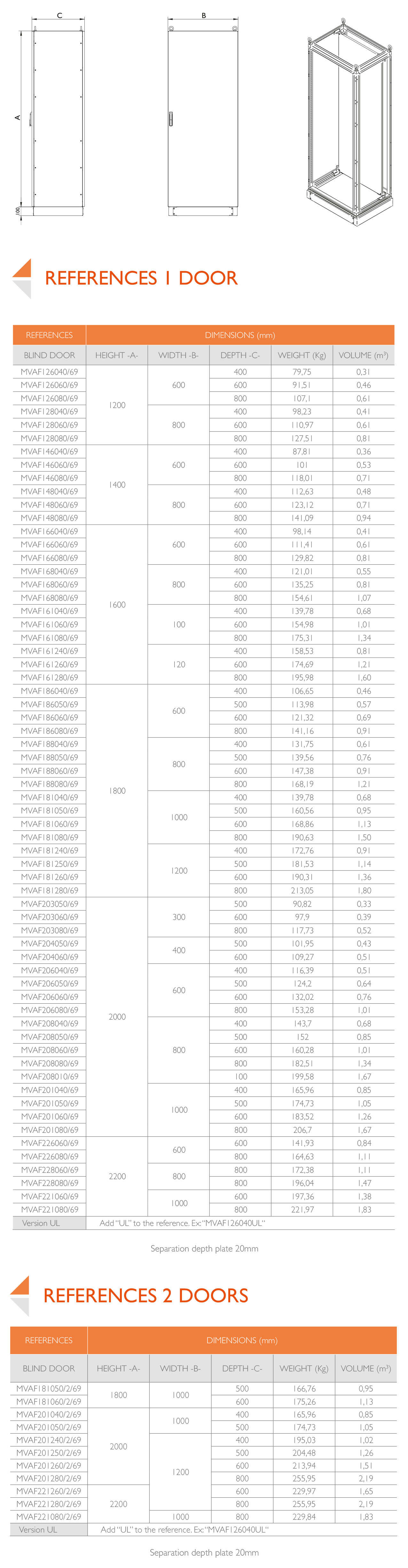

Sketches
