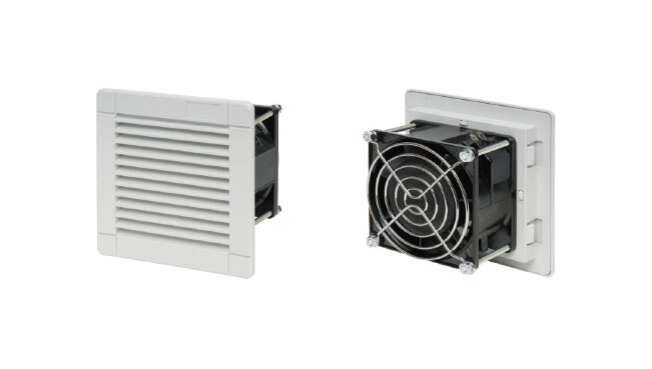

Filter Fans Prius Thermoplastic

PRIUS SERIES

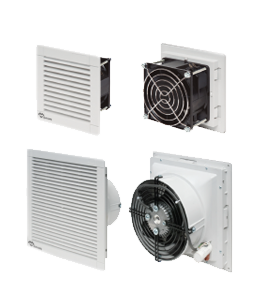

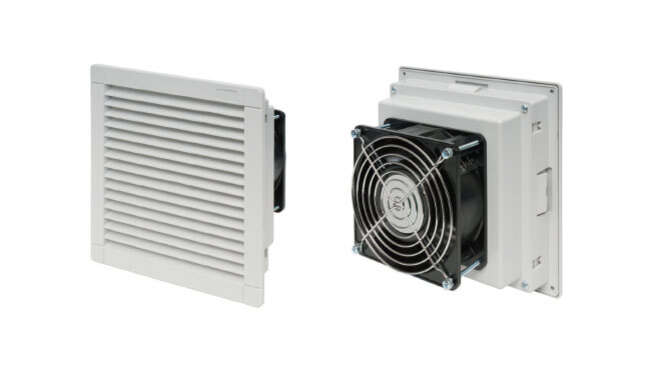

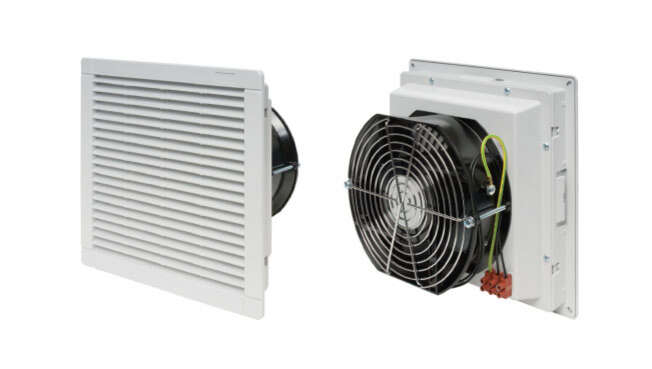

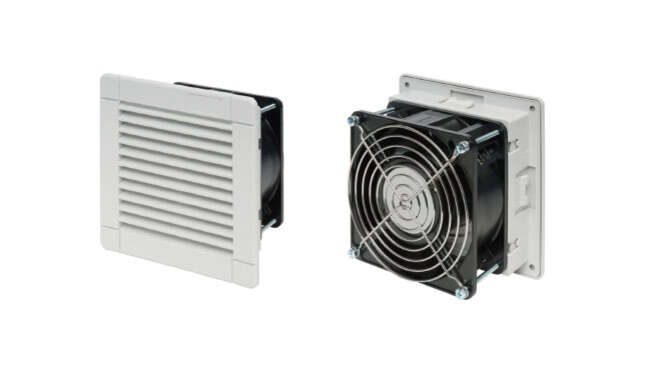

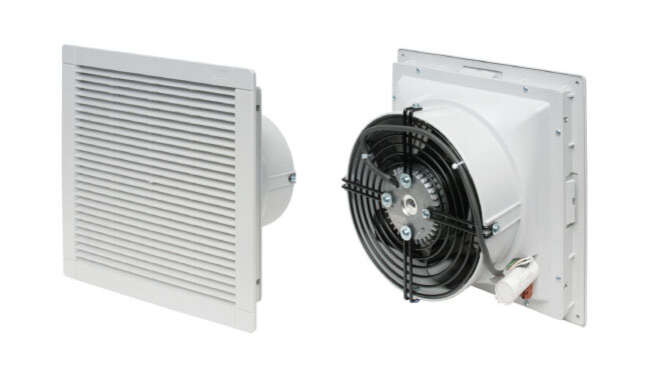

Built-in filter fan made Injected Thermoplastic, high performance, low power and soundless, with a slim design (only 4 mm) and an affordable price.

ECOfriendly: low consumption, high. efficiency and very silent.
• Fast “clip-on” mounting.
• “Inside-out” air flow direction.

Filter Fans Prius Thermoplastic · Delvalle BoxDelvalle Box
Filter Fans Prius Thermoplastic · Delvalle BoxDelvalle Box
Filter Fans Prius Thermoplastic · Delvalle BoxDelvalle Box
Filter Fans Prius Thermoplastic · Delvalle BoxDelvalle Box
Filter Fans Prius Thermoplastic · Delvalle BoxDelvalle Box
Filter Fans Prius Thermoplastic · Delvalle BoxDelvalle Box
Filter Fans Prius Thermoplastic · Delvalle BoxDelvalle Box
Filter Fans Prius Thermoplastic · Delvalle BoxDelvalle Box

This product has the following certificates

  • Logo IP54 · Delvalle Box
  • Logo IP55 · Delvalle Box
  • Logo UL NEMA 12 · Delvalle Box

Description

Built-in filter fan, high performance, low power, and soundless, with a slim design, only 4 mm, and an affordable price. These fans are ideal for the removal of large heat loads inside the cabinets economically and easible.

Its compact design, easy mounting and dismounting for quick cleaning make it ideal for use in any heat dissipation inside the enclosure. Quick assembly thanks to “Clip-on” feature with self-adhesive gasket.

Discover the advantages

• Working life +50.000 hours at 40ºC.
ECOfriendly: low consumption, high. efficiency and very silent.
• Fast “Clip-on” mounting.
• Self-adhesive gasket.

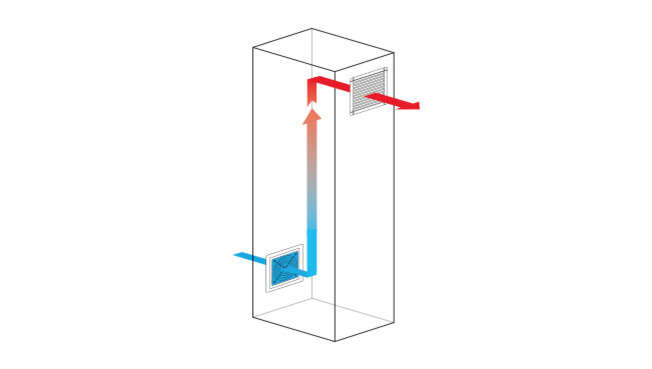

• “Inside-out” air flow direction.
• Ball bearing.
• Maximum reliability and efficiency.
• Panels with thickness in range 1,2 - 2,4 mm.
Operating temperature between -10ºC and +70ºC.
• Duty cycle 100%.
• The fan is supplied with a filter designed for easy cleaning and high resistance.
• Also in stainless steel version.

Regulations

• IP54/Class I Norm IEC 60529.
• Built under directive 2014/35/UE low voltage.
Operating temperature -10°C +70°C.
• Filter mat (Eurovent) EU2 and EU3 (depending on model).
• Material ABS UL94V-O. Colour Ral 7035.
• Working life +50.000 hours at 40ºC.

Applications

Specially designed for use in installations that need a high level of protection IP54/55.

Custom Made Solutions
We offer multiple solutions

Filter Fans Prius Thermoplastic · Delvalle Box
Do you need solutions?
2020 product catalogues

• We recommend our thermostats to be installed (*).
• EMC Electromagnetic Compatible Version.

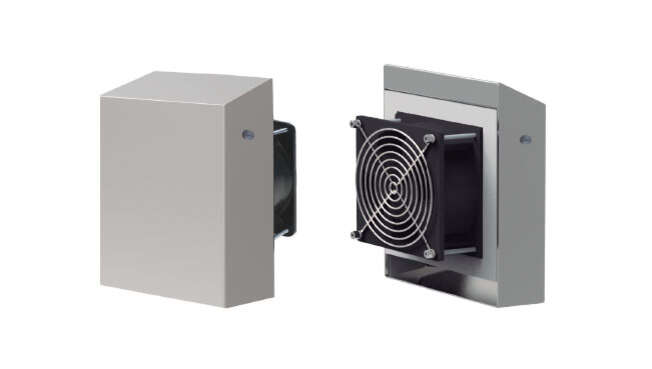

• IP55 with special filtering with casing Ral 7035.
• “Outside-in” flow direction.
UL approved (Underwriters laboratories) File n. E301228.
• Ral 7032 (grey) and Ral 9005 (black).

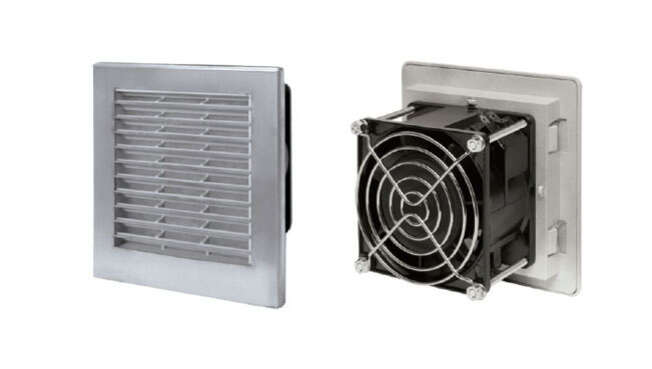

Stainless Steel Version AISI 304L.

Customers also bought:
Filter Fans Stainless Steel Prius IP54-55 · Delvalle BoxDelvalle Box
Built-in filter fan, high performance, low power and soundless, with a slim design (only 4mm) and...
EMC Filter Fans Prius IP54-55 · Delvalle BoxDelvalle Box
EMC fan with fitted filter and EMC conductive gasket. High performance, low power, and silent...
Filter Fan Stainless Steel  with Casing Prius IP55 · Delvalle BoxDelvalle Box
Built-in filter fan IP55 with special filtering with casing, high performance, low power, and...
Filter Fans Prius Thermoplastic · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVP024ASVENTILADOR CON FILTRO IP54-55 SERIE PRIUS11411453MVP024AS
MVP024BSVENTILADOR CON FILTRO IP54-55 SERIE PRIUS11411457MVP024BS
MVP024DSVENTILADOR CON FILTRO IP54-55 SERIE PRIUS11411445MVP024DS
MVP024ESVENTILADOR CON FILTRO IP54-55 SERIE PRIUS11411445MVP024ES
MVP055ASVENTILADOR CON FILTRO IP54-55 SERIE PRIUS15015077MVP055AS
MVP055BSVENTILADOR CON FILTRO IP54-55 SERIE PRIUS15015077MVP055BS
MVP055ESVENTILADOR CON FILTRO IP54-55 SERIE PRIUS15015077MVP055ES
MVP055FSVENTILADOR CON FILTRO IP54-55 SERIE PRIUS15015077MVP055FS
MVP120ASVENTILADOR CON FILTRO IP54-55 SERIE PRIUS20420498MVP120AS
MVP120BSVENTILADOR CON FILTRO IP54-55 SERIE PRIUS20420498MVP120BS
MVP120ESVENTILADOR CON FILTRO IP54-55 SERIE PRIUS20420498MVP120ES
MVP120FSVENTILADOR CON FILTRO IP54-55 SERIE PRIUS20420498MVP120FS
MVP230ASVENTILADOR CON FILTRO IP54-55 SERIE PRIUS250250119MVP230AS
MVP230BSVENTILADOR CON FILTRO IP54-55 SERIE PRIUS250250119MVP230BS
MVP230ESVENTILADOR CON FILTRO IP54-55 SERIE PRIUS250250119MVP230ES
MVP230FSVENTILADOR CON FILTRO IP54-55 SERIE PRIUS250250119MVP230FS
MVP370ASVENTILADOR CON FILTRO IP54-55 SERIE PRIUS250250110MVP370AS
MVP370BSVENTILADOR CON FILTRO IP54-55 SERIE PRIUS250250110MVP370BS
MVP370CSVENTILADOR CON FILTRO IP54-55 SERIE PRIUS250250110MVP370CS
MVP500ASVENTILADOR CON FILTRO IP54-55 SERIE PRIUS320320151MVP500AS
MVP500BSVENTILADOR CON FILTRO IP54-55 SERIE PRIUS320320151MVP500BS
MVP500CSVENTILADOR CON FILTRO IP54-55 SERIE PRIUS320320151MVP500CS
MVP630ASVENTILADOR CON FILTRO IP54-55 SERIE PRIUS320320151MVP630AS
MVP630BSVENTILADOR CON FILTRO IP54-55 SERIE PRIUS320320151MVP630BS
