Panoramic Wall Mounted Stainless Steel Enclosure Luxor Tedeo IP66

LUXOR SERIES

Delvalle knows the needs of our customers and for this we’ve created the panoramic wall mounted completely Luxor Tedeo Series stainless steel cabinet, with two or three doors AISI 304L EN 14306.

Is possible to open up the door with neumatic dampers.

Panoramic Wall Mounted Stainless Steel Enclosure Luxor Tedeo IP66 · Delvalle Box

This product has the following certificates

Description

Delvalle knows the needs of our customers and for this we’ve created the panoramic wall mounted completely Luxor Tedeo Series stainless steel cabinet, with two or three doors AISI 304L EN 14306. The cabinet design follows the same philosophy of sealing and strength as our other electrical enclosures, cabinets but this time focusing on their horizontal use for both above and below, integration in the machinery.

High performance stainless steel used to offer quality, reliability and consistency and by following strict manufacture controls without forgetting the satin or brushed finish and the option of RAL 7035 polyester painting make it ideal for outside use.

Download all documents and certificates

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Discover the advantages

Supplied with protective film which prevents scratches and abrasions during handling.
It integrates into the machine horizontally.
Can be placed at the top or bottom.
Two ways of opening sidewords or upwards using a hydraulic door mechanism in each case.
The standard stainless steel electrical panel comes with 90º double bit locks, 3 fixing points and hidden hinges.
Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.

Regulations

IP66 (IP55 double door without mounting, IP66 with central welded bar mounting) Norm IEC 60529.
Maximum IK10 resistance Norm IEC 62262.
Manufactured following EU low voltage ruling 2014/35/UE.
RoHS Directive 2011/65/UE compliant.
UL approval Nema 4x, 12, 3r, 1. Nº File E342220.
Maximum voltage 1000 V
Temperature resistant: -40°C +80°C (short time +160°C).

Applications

Especially designed for machine manufacturers who place this cabinet inside the machine´s frame.

Custom Made Solutions
We offer multiple solutions

Do you need solutions?

Delvalle Box has the solution

2021 product catalogues

Download Zone

Custom made based on your needs.
With the possibility to join several modules.
Plinths at base
Eyebolt (not included in standard model).
Swing rack.
All types of ventilation.
Cable entry cover at base.
Metal legs and wheels.
Up to IP69K -DIN 40050-9.
Transparent polycarbonate door, with tempered glass or with safety glass.
Finished in textured paint RAL on request.
Mounting plate insulator (bakelite) or painted steel.
Manufactured in stainless steel AISI 316L. EN 14404.
EMC version according to 2014/30/UE of electromagnetic compatibility.

Lighting for Electrical Enclosures

Delvalle compact luminaires are specially designed for use in electrical cabinets. We have low...

Security lock

Security lock for placement it in electrical cabinets.

Locks

Depending on the enclosure and its use, we look for the best closure suited to the customer’s...

Assembly Frame

Chassis modular cabinets. Used to divide the front of the cabinets into several sections for quick...

Thermal Insulation for Electrical Panels TermoTisa

Delvalle I+D deparment has specially designed the insulating TermoTisa X100, in 15mm polyurethane...

Cable Entry Cover

Ideal accessory supplement, removable to make holes comfortably to suit your needs, and fitted so...

Clear Glass Door

All our cabinets are available with transparent exterior and interior doors for perfect vision of...

Roofs for Outdoor

In Delvalle we offer the possibility to ask for self-ventilated roofs....

Mounting Plates

Different mounting plates for multiple uses in electrical cabinets Delvalle.

Data Pocket

Useful to keep electrical drawings, maintenance records, etc.....

Pedestal Stands

Steel foot bracket to fix the cabinets to the floor.

Sockets

Stainless steel plinthbase 100 and 200 mm high. Allows cabinet to be raised and get extra ...

Transportation Angle

The transportation angles add strength in handling loading and unloading of the cabinets.

Switchboard Graffiti-Proof Paint

In Delvalle all cabinets may suminstrarse with a protective transparent anti-graffiti paint and...

Anti-Insect System

We know the problem for the placement of cooling systems posed by the entry of insects inside the...

Perforated Mounting Plate

Perforated plates for quick installation of electrical components.

Stainless Steel Ventilation Plugs IP68

Stainless steel ventilation plugs IP68 reduce the adverse effects of humidity in the environment...

Shock Absorbers for Electrical Enclosures

With the shock absorbers we get a better grip on the doors, and we define the opening angle of the...

Separating Plate

Fixed directly to the cabinet structure, to get separation as well as being a shelf for objects.

Pivot Frame

The ideal solution for the placement of all instrumentation, with easy and comfortable access from...

Ventilation Brackets

Placed both in the front enclosure and on the side, allowing a perfect flow of air inside.

DIN tray

Directly fixed to the structure. Galvanized 1.5 mm thick steel. Dimensions: 35mm by 7.5 or 5mm.

Safety Lock

Typically used in enclosures with temporary changes of user. You can also use the padlock seal,...

Set With Inner Door

Interior door designed for direct placement in the enclosure.

Open Door Security Device

This device prevents accidents, alerts the operator that the electrical system is functioning...

Designs / Doors

The possibility of placing a double door in the cabinet is given to meet the customer’s need to...

Limit Switches for Electrical Enclousure

Limit switches provided with support and fixings for direct fixing....

Sliding Cable Covers

These caps allow cable entry between them.

Pole Mount

Delvalle offers the solution for post mounting, providing a perfect fixing of the enclosure.

Cross Cable Guide

With this guide inside the door we get a perfectly ordered wiring. Ideal for the passage of...

Outdoor Air Conditioner Electrical Enclosures Tropic

The largest range of IP54 air conditioners electrical enclosures refrigerators in the market, air...

Roof fan

Roof Fan, specially designed for extracting heat from the top of the cabinet, for achieving...

Waterproof Seal

Injected waterproof seal UL, TÜV, CE certified. ...

Wall Mounting Brackets

They are fixed from the outside and can be positioned either vertically or horizontally.

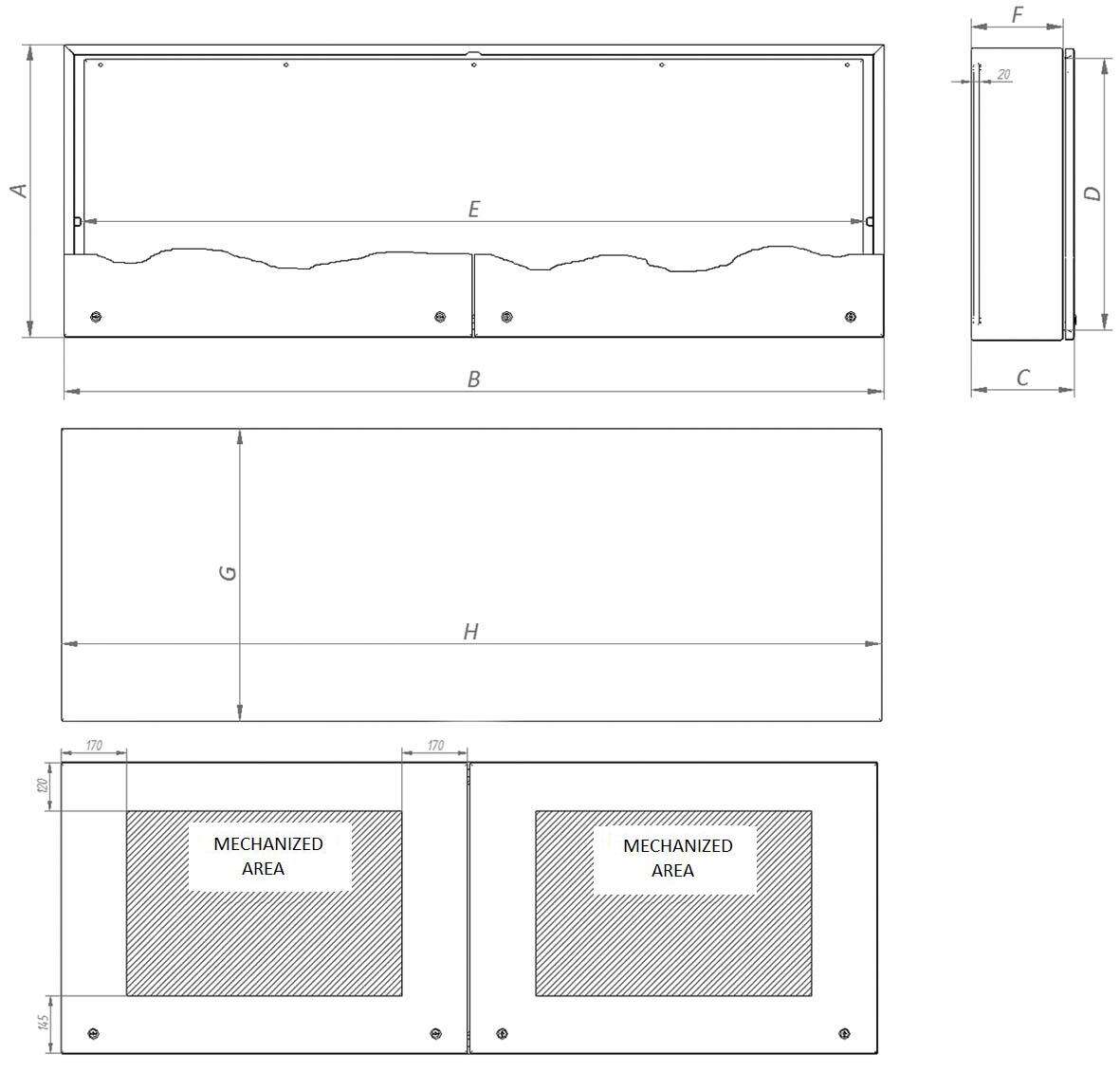

Sketches

References

Show References

Reference	Description	High	Width	Background
TD505030	PANORAMIC WALL MOUNTED INOX CABINET LUXOR TEDEO IP66 1 DOOR	500	500	300	TD505030
TD507530	1 PUERTA PANORAMIC WALL MOUNTED INOX CABINET LUXOR TEDEO IP66 1 DOOR	500	750	300	TD507530
TD501030	PANORAMIC WALL MOUNTED INOX CABINET LUXOR TEDEO IP66 1 DOOR	500	1000	300	TD501030
TD501230	PANORAMIC WALL MOUNTED INOX CABINET LUXOR TEDEO IP66 1 DOOR	500	1250	300	TD501230
TD501530	PANORAMIC WALL MOUNTED INOX CABINET LUXOR TEDEO IP66 1 DOOR	500	1500	300	TD501530
TD501030.2P	PANORAMIC WALL MOUNTED INOX CABINET LUXOR TEDEO IP66 2 DOORS	500	1000	300	TD501030.2P
TD501230.2P	PANORAMIC WALL MOUNTED INOX CABINET LUXOR TEDEO IP66 2 DOORS	500	1200	300	TD501230.2P
TD501430.2P	PANORAMIC WALL MOUNTED INOX CABINET LUXOR TEDEO IP66 2 DOORS	500	1400	300	TD501430.2P
TD501630.2P	PANORAMIC WALL MOUNTED INOX CABINET LUXOR TEDEO IP66 2 DOORS	500	1600	300	TD501630.2P
TD501830.2P	PANORAMIC WALL MOUNTED INOX CABINET LUXOR TEDEO IP66 2 DOORS	500	1800	300	TD501830.2P
TD502030.2P	PANORAMIC WALL MOUNTED INOX CABINET LUXOR TEDEO IP66 2 DOORS	500	2000	300	TD502030.2P
TD502230.3P	PANORAMIC WALL MOUNTED INOX CABINET LUXOR TEDEO IP66 3 DOORS	500	2250	300	TD502230.3P
TD502530.3P	PANORAMIC WALL MOUNTED INOX CABINET LUXOR TEDEO IP66 3 DOORS	500	2500	300	TD502530.3P
TD503030.3P	PANORAMIC WALL MOUNTED INOX CABINET LUXOR TEDEO IP66 3 DOORS	500	3000	300	TD503030.3P
	Version: Norm UL - Add “UL” to reference. Ex. “TD501030UL”
	Version: Transparent door - Add “T” to reference. Ex. “TD501030T” “TD501030T.2P” “TD502230T.3P “
