Aluminium Free-Standing Enclosure Tribeca IP66

TRIBECA SERIES

Tribeca compact electric cabinet with improved design, robust, easy to open by rotating handle with four locking points, smooth opening, easy installation on the floor itself, flexible, maximum working width. Made in aluminum painted RAL 7035 paint finish.

Aluminium Free-Standing Enclosure Tribeca IP66 · Delvalle Box

This product has the following certificates

Description

The only enclosure in the market in aluminum and in large sizes. The monobloc allows sealing to IP65 and an IK7 resistance. Available with one or two 120º easily removable revolving doors. Plinth at base for cable entry recommended.

Download all documents and certificates

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Discover the advantages

Large space in the interior.
Light enclosure with a weight three times lower than a normal one.
Delivered with protective film that prevents scratches during handling
Monobloc design that guarantees more tightness and corrosion resistance.
A drainage channel prevents liquid contact with the polyurethane gasket and with concealed hinges.
120º door opening. Standard opening to the left, specify if it is prefered rightwards.
Standard electrical panel with four locking points handle and concealed stainless steel hinges.
Delvalle made to order in any size to suit your needs and all drilling holes, both for the door and the enclosure itself.

Regulations

• To IP65 (IP55 two doors) Norm IEC EN 62208 EN 60529.
• Maximum IK7 resistance Norm IEC 62208 y EN 50102.
• Manufactured following EU low voltage ruling 2014/35/UE.
• UL approval Nema 4, 12, 3r, 1. Nº File E342220.

Applications

Specially designed for the placement of automation, machine controls, meters, heating, and air conditioning,, control systems, electrical distribution, industrial networks, in the industrial environment...

Electric enclosures approved for wind and solar plants, transformers, telecommunications and outdoors, given its durability and resistance against external agents.

Custom Made Solutions
We offer multiple solutions

Do you need solutions?

Delvalle Box has the solution

2021 product catalogues

Download Zone

• Custom made based on your needs.
• With a choice of two doors (from 1200mm width).
• Roof protection from sun, rain, etc.
• Transparent polycarbonate door.
• Transparent safety glass door.
• Cable entry cover at base.
• Mounting plate insulator (bakelite) or stainless steel.
• EMC version according to 2014/30/UE of electromagnetic compatibility.

Lighting for Electrical Enclosures

Delvalle compact luminaires are specially designed for use in electrical cabinets. We have low...

Security lock

Security lock for placement it in electrical cabinets.

Locks

Depending on the enclosure and its use, we look for the best closure suited to the customer’s...

Assembly Frame

Chassis modular cabinets. Used to divide the front of the cabinets into several sections for quick...

Thermal Insulation for Electrical Panels TermoTisa

Delvalle I+D deparment has specially designed the insulating TermoTisa X100, in 15mm polyurethane...

Cable Entry Cover

Ideal accessory supplement, removable to make holes comfortably to suit your needs, and fitted so...

Clear Glass Door

All our cabinets are available with transparent exterior and interior doors for perfect vision of...

Roofs for Outdoor

In Delvalle we offer the possibility to ask for self-ventilated roofs....

Mounting Plates

Different mounting plates for multiple uses in electrical cabinets Delvalle.

Levelling Feet and Wheels

For enclosures that need to be leveled or have to be moved regularly.

Support Rails

Support rails used to incorporate cabinets with scroll ball.

Data Pocket

Useful to keep electrical drawings, maintenance records, etc.....

Sockets

Stainless steel plinthbase 100 and 200 mm high. Allows cabinet to be raised and get extra ...

Transportation Angle

The transportation angles add strength in handling loading and unloading of the cabinets.

Switchboard Graffiti-Proof Paint

In Delvalle all cabinets may suminstrarse with a protective transparent anti-graffiti paint and...

Anti-Insect System

We know the problem for the placement of cooling systems posed by the entry of insects inside the...

Perforated Mounting Plate

Perforated plates for quick installation of electrical components.

Stainless Steel Ventilation Plugs IP68

Stainless steel ventilation plugs IP68 reduce the adverse effects of humidity in the environment...

Shock Absorbers for Electrical Enclosures

With the shock absorbers we get a better grip on the doors, and we define the opening angle of the...

Separating Plate

Fixed directly to the cabinet structure, to get separation as well as being a shelf for objects.

Pivot Frame

The ideal solution for the placement of all instrumentation, with easy and comfortable access from...

Ventilation Brackets

Placed both in the front enclosure and on the side, allowing a perfect flow of air inside.

Eyebolt

Galvanized in sizes M12 to M20....

DIN tray

Directly fixed to the structure. Galvanized 1.5 mm thick steel. Dimensions: 35mm by 7.5 or 5mm.

Safety Lock

Typically used in enclosures with temporary changes of user. You can also use the padlock seal,...

Set With Inner Door

Interior door designed for direct placement in the enclosure.

Open Door Security Device

This device prevents accidents, alerts the operator that the electrical system is functioning...

Designs / Doors

The possibility of placing a double door in the cabinet is given to meet the customer’s need to...

Limit Switches for Electrical Enclousure

Limit switches provided with support and fixings for direct fixing....

Reinforcing Frame

Using a reinforced frame in our enclosure gives us more confidence and consistency, especially in...

Sliding Cable Covers

These caps allow cable entry between them.

Cross Cable Guide

With this guide inside the door we get a perfectly ordered wiring. Ideal for the passage of...

Protection Frame Window

It is used to provide maximum viewing capacity of the indication elements and protection of the...

Outdoor Air Conditioner Electrical Enclosures Tropic

The largest range of IP54 air conditioners electrical enclosures refrigerators in the market, air...

Roof fan

Roof Fan, specially designed for extracting heat from the top of the cabinet, for achieving...

Waterproof Seal

Injected waterproof seal UL, TÜV, CE certified. ...

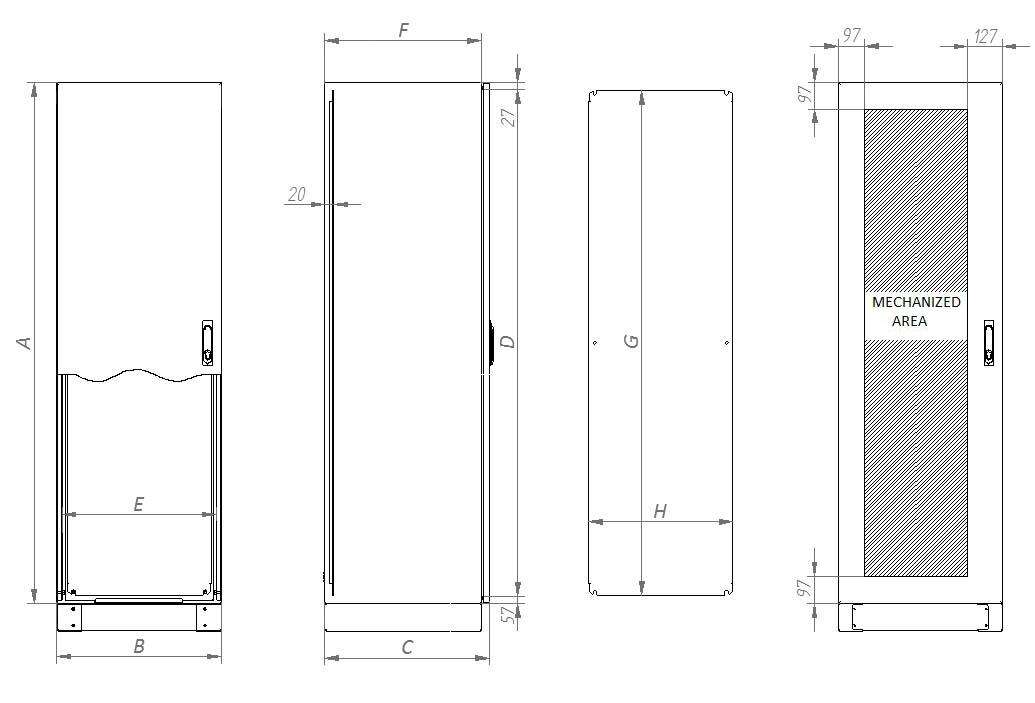

Sketches

References

Show References

Reference	Description	High	Width	Background
MVALC166040	ARMARIO TRIBECA ALUMINIO	1650	600	400	MVALC166040
MVALC168040	ARMARIO TRIBECA ALUMINIO	1650	800	400	MVALC168040
MVALC161040	ARMARIO TRIBECA ALUMINIO	1650	1000	400	MVALC161040
MVALC186040	ARMARIO TRIBECA ALUMINIO	1800	600	400	MVALC186040
MVALC188040	ARMARIO TRIBECA ALUMINIO	1800	800	400	MVALC188040
MVALC186050	ARMARIO TRIBECA ALUMINIO	1800	600	500	MVALC186050
MVALC188050	ARMARIO TRIBECA ALUMINIO	1800	800	500	MVALC188050
MVALC181040	ARMARIO TRIBECA ALUMINIO	1800	1000	400	MVALC181040
MVALC181050	ARMARIO TRIBECA ALUMINIO	1800	1000	500	MVALC181050
MVALC206040	ARMARIO TRIBECA ALUMINIO	2000	600	400	MVALC206040
MVALC208040	ARMARIO TRIBECA ALUMINIO	2000	800	400	MVALC208040
MVALC208050	ARMARIO TRIBECA ALUMINIO	2000	800	500	MVALC208050
MVALC201040	ARMARIO TRIBECA ALUMINIO	2000	1000	400	MVALC201040
MVALC201050	ARMARIO TRIBECA ALUMINIO	2000	1000	500	MVALC201050
MVALC161240	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA	1650	1200	400	MVALC161240
MVALC181240	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA	2000	1200	400	MVALC181240
MVALC181250	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA	2000	1200	500	MVALC181250
MVALC201240	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA	2000	1200	400	MVALC201240
MVALC201250	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA	2000	1200	500	MVALC201250
MVALC201440	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA	2000	1400	400	MVALC201440
MVALC201450	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA	2000	1400	500	MVALC201450
MVALC201640	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA	2000	1600	400	MVALC201640
MVALC201650	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA	2000	1600	500	MVALC201650
MVALC166040T	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO	1650	600	400	MVALC166040T
MVALC168040T	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO	1650	800	400	MVALC168040T
MVALC161040T	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO	1650	1000	400	MVALC161040T
MVALC186040T	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO	1800	600	400	MVALC186040T
MVALC188040T	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO	1800	800	400	MVALC188040T
MVALC186050T	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO	1800	600	500	MVALC186050T
MVALC188050T	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO	1800	800	500	MVALC188050T
MVALC181040T	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO	1800	1000	400	MVALC181040T
MVALC181050T	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO	1800	1000	500	MVALC181050T
MVALC206040T	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO	2000	600	400	MVALC206040T
MVALC208040T	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO	2000	800	400	MVALC208040T
MVALC208050T	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO	2000	800	500	MVALC208050T
MVALC201040T	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO	2000	1000	400	MVALC201040T
MVALC201050T	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO	2000	1000	500	MVALC201050T
MVALC161240T	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO	1650	1200	400	MVALC161240T
MVALC181240T	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO	1800	1200	400	MVALC181240T
MVALC181250T	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO	1800	1200	500	MVALC181250T
MVALC201240T	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO	2000	1200	400	MVALC201240T
MVALC201250T	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO	2000	1200	500	MVALC201250T
MVALC201440T	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO	2000	1400	400	MVALC201440T
MVALC201450T	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO	2000	1400	500	MVALC201450T
MVALC201640T	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO	2000	1600	400	MVALC201640T
MVALC201650T	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO	2000	1600	500	MVALC201650T
MVALC166040TC	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO + CONTRAPUERTA	1650	600	400	MVALC166040TC
MVALC168040TC	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO + CONTRAPUERTA	1650	800	400	MVALC168040TC
MVALC161040TC	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO + CONTRAPUERTA	1650	1000	400	MVALC161040TC
MVALC186040TC	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO + CONTRAPUERTA	1800	600	400	MVALC186040TC
MVALC188040TC	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO + CONTRAPUERTA	1800	800	400	MVALC188040TC
MVALC186050TC	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO + CONTRAPUERTA	1800	600	500	MVALC186050TC
MVALC188050TC	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO + CONTRAPUERTA	2000	800	500	MVALC188050TC
MVALC181040TC	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO + CONTRAPUERTA	2000	1000	400	MVALC181040TC
MVALC181050TC	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO + CONTRAPUERTA	2000	1000	500	MVALC181050TC
MVALC206040TC	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO + CONTRAPUERTA	2000	600	400	MVALC206040TC
MVALC208040TC	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO + CONTRAPUERTA	2000	800	400	MVALC208040TC
MVALC208050TC	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO + CONTRAPUERTA	2000	800	500	MVALC208050TC
MVALC201040TC	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO + CONTRAPUERTA	2000	1000	400	MVALC201040TC
MVALC201050TC	ARMARIO TRIBECA ALUMINIO PUERTA POLICARBONATO + CONTRAPUERTA	2000	1000	500	MVALC201050TC
MVALC161240TC	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO + CONTRAPUERTA	1650	1200	400	MVALC161240TC
MVALC181240TC	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO + CONTRAPUERTA	1800	1200	400	MVALC181240TC
MVALC181250TC	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO + CONTRAPUERTA	1800	1200	500	MVALC181250TC
MVALC201240TC	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO + CONTRAPUERTA	2000	1200	400	MVALC201240TC
MVALC201250TC	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO + CONTRAPUERTA	2000	1200	500	MVALC201250TC
MVALC201440TC	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO + CONTRAPUERTA	2000	1400	400	MVALC201440TC
MVALC201450TC	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO + CONTRAPUERTA	2000	1400	500	MVALC201450TC
MVALC201640TC	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO + CONTRAPUERTA	2000	1600	400	MVALC201640TC
MVALC201650TC	ARMARIO TRIBECA ALUMINIO DOBLE PUERTA POLICARBONATO + CONTRAPUERTA	2000	1650	500	MVALC201650TC

Successful Cases

Spain

AMAZON LOGISTIC CENTRE

The e-commerce boom brought about by the population lockdown continues to put pressure on retail...

Spain

GAMESA WIND TURBINES

In Paradela (Lugo), construction began on a wind farm with a capacity of 12 megawatts (MW), with a...

Brazil

BLUE MARLIN COMBINED CYCLE

A project of this nature (combined cycle) requires knowledge and experience in power generation due...

Guatemala

Las Cumbres, wind energy

Wind power is one of the most important and growing renewable sources for generating electric power....

France

GARBAGE TRUCKS

The most part of our electrical enclosures are located in a certain place and they are rarely...

Ecuador

Milagro Substation

The new transmission system Milagro - Babahoyo doubles the transmission capacity of the existing...

Canada

Eglinton Crosstown

The Eglinton Crosstown is a light rail transit line that will run along Eglinton Avenue between...

Canada

Montreal Metro

Montreal metro is renowned for its architecture and art. A different architect has designed each...

United Kingdom

Seagreen Offshore Wind Farm

Seagreen offshore wind farm project is being developed in two phases in the Firth of Forth...

United States

Newark Liberty International Airport

Newark Liberty International Airport is an international airport straddling the boundary between...

Saudi Arabia

Solar Power Plant

The company Saudi Aramco that is specialized in oil & gas produces, it is now considered as one of...

Bolivia

Cochabamba GT Power Plant in Carrasco

In some cases, the simplest projects are the ones that involve more experience and more...

Algeria

Wellhead Control Enclosures

The Algerian state oil company Sonatrach announced the success of its oil-drilling project started...

United States

Moving Walkway at Dallas Fort Worth International Airport

Dallas/Fort Worth International Airport is the primary international airport serving...

Russian Federation

Liquefied Natural Gas (LNG) in the Russian Arctic

The project includes the construction of three LNG trains, with a capacity of 6,6 mtpa. of LNG each,...

Chile

Atacama Large Millimeter Array

The Atacama Large Millimeter/submillimeter Array (ALMA) is the most complex astronomical observatory...

Saudi Arabia

The Riyadh Metro

The Riyadh metro is one of the largest infrastructure works ever built. This metro represents a true...

United States

Hyperimmune Plasma in Patients with COVID-19

Delvalle has supplied stainless steel junction boxes for pharmaceutical industry in the development...

Canada

High-Speed Moving Walkway at Toronto Airport

The new high-speed moving walkway has been installed at Toronto Airport, in Canada. It is called...

Albania

Trans Adriatic Pipeline

The Trans Adriatic pipeline is one of the most ambitious engineering projects of the last decade,...

Peru

Chinalco Mining in Peru

Toromocho project (mine truck shop facilities) is located at 4.500m above sea level, in the mining...

Norway

Follo Line Rail Tunnels, Norway’s Biggest Rail Project

They will be the longest railway tunnels in Scandinavia, part of the Follo Line project, the biggest...

Spain

Enclosures for Charging Station for Electric Vehicles

Stainless steel Enclosures Designed to be installed in Charging Station for Electric Vehicles, both...

United Kingdom

Kincardine Floating Marine Wind Farm (Scotland)

Delvalle was chosen for the Kicanrdine Offshore floating Wind Farm in Scotland as the supplier of...

Switzerland

Official Supplier of CERN ( Large Hadron Collider)

Delvalle habe been approved for the supplier to CERN of Stainless steel Industrial Enclosures....

Mexico

New Metro Line in Guadalajara (Mexico)

The construction of line 3 of Guadalajara subway (Mexico) has began. This is one of the most...

Qatar

New Port of Doha

Delvalle are suppliers to the firms making this new port on Doha, capital of Qatar....

Spain

Motorway C-16

At Delvalle we are suppliers of outdoor electrical cabinets for protecting the C-16 data...

Spain

AVE Monforte del Cid–Murcia

We are the supplier of the electrical cabinets for the high speed rail line between Monforte and...

United States

Danone Yogurt Factory in Ohio

We supply stainless steel enclosures hygienic design series this factory, one of the highest north...

United Kingdom

Wikinger, The largest Deep sea offshore windfarm

At Delvalle we have customized a solution to guarantee the sealing and maximum resistance in such a...

France

Nuclear Power Stations

Delvalle is very conscious to any possible risks that may have nuclear power....

Spain

Enlargement of the Port of Barcelona

A special and different port. Commercial, citizen, energy and logistical use....

Algeria

Oran Tamway

We supplied cabinets meeting the demanding French specifications....

Turkey

Ferrovial Tunnel Under the Marmara Sea

Delvalle and Siemens designed EMC electrical cabinets for the placement of electronics and signaling...

Spain

AVE Madrid-Valencia

Electrical cabinets for transmission of a multitude of data to the main data centre....

Panama

The Panama Channel Expansion Project

Manufacture and installation of watertight and hurricanes resistant IP67 nema 4x enclosures....

Kuwait

Desalination Plant

Special cabinets to support the special characteristics of this harsh desert area....

Aluminium Free-Standing Enclosure Tribeca IP66

This product has the following certificates

Description

Download all documents and certificates

Discover the advantages

Regulations

Applications

Custom Made SolutionsWe offer multiple solutions

Sketches

References

Yes, We are Open!

Custom Made Solutions
We offer multiple solutions
